Engine displacement
850
2
Model
850-T5
3
Year
1996
4
Trim
T5 Polizia/CC/PA/NC
5
Parts Catalog
Body I
6
Parts Diagram
Parts Catalog
Side cases
by
Body II
Body I
1
2
3
4
5
6
6
6
7
7
8
9
10
11
12
13
14
14
15
15
15
15
16
16
16
17
18
18
18
18
18
18
18
18
18
19
19
19
19
19
19
19
19
20
20
20
20
21
21
21
21
21
21
22
22
22
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
40
41
41
42
43
43
44
45
46
47
1
Front body, sky blue
GU28575348
Not Available
1
Front body, white
GU28575319
Not Available
1
Front body, navy blue
GU28575318
Not Available
2
Front fairing, navy blue
GU28575417
Not Available
2
Front fairing, blank
GU285754301
Not Available
2
Front fairing, sky blue
GU28575448
Not Available
2
Front fairing, white
GU28575419
Not Available
3
Windscreen
GU28577247
£441,20 Unit Price incl. VAT
4
RH lateral fairing, sky blue
GU28570348
Not Available
4
RH lateral fairing, white
GU28570319
Not Available
4
RH lateral fairing, navy blue
GU28570318
Not Available
4
RH lateral fairing, blank
GU285703181
Not Available
5
RH container
GU30576210
Not Available
6
Rubber spacer
GU91551085
Not Available
7
screw
GU99210316
£1,26 Unit Price incl. VAT
8
LH lateral fairing, white
GU28570419
Not Available
8
LH lateral fairing, navy blue
GU28570418
Not Available
8
LH lateral fairing, sky blue
GU28570448
Not Available
8
LH lateral fairing, blank
GU285704181
Not Available
9
LH container
GU30576310
Not Available
10
Knee guard
GU19941715
Not Available
11
Pillar, blue
GU28570580
Not Available
11
Pillar
GU28570548
Not Available
11
Pillar, white
GU28570519
Not Available
11
Pillar, blank
GU285705801
Not Available
12
Maintenance
GU28578647
£457,70 Unit Price incl. VAT
13
plate
GU28769747
Not Available
14
Rearview mirror
GU28769847
£105,56 Unit Price incl. VAT
15
screw
GU98250625
£0,96 Unit Price incl. VAT
16
Screw
GU98250630
£1,43 Unit Price incl. VAT
17
Screw M6x35
GU98250635
£1,06 Unit Price incl. VAT
18
Washer
GU18577850
£1,56 Unit Price incl. VAT
19
O-ring
GU45212400
Not Available
20
Washer 5,3x10x0,5
GU95100121
Not Available
21
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
22
Rubber spacer
GU93110060
£1,09 Unit Price incl. VAT
23
Washer 6,4x12x1,2
GU95100141
£1,02 Unit Price incl. VAT
24
Clip
GU28576590
£2,35 Unit Price incl. VAT
25
RH clamp
GU28579182
£49,69 Unit Price incl. VAT
26
Silent-block
GU93222020
Not Available
27
Captive nut
GU92660601
£1,58 Unit Price incl. VAT
28
Hex socket screw
GU98610335
£1,26 Unit Price incl. VAT
29
Spacer 7X12X5
GU91180705
£12,61 Unit Price incl. VAT
30
LH clamp
GU28579282
£32,60 Unit Price incl. VAT
31
RH plate
GU28571947
Not Available
32
LH plate
GU28572147
Not Available
33
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
34
Washer 6,15x11x0,8
GU95004206
Not Available
35
Plate
GU28579160
Not Available
36
screw
GU98326016
£1,66 Unit Price incl. VAT
37
Spacer
GU91180607
Not Available
38
Washer
GU95001206
Not Available
39
Nut
GU92630207
£1,49 Unit Price incl. VAT
40
screw
GU98074416
Not Available
41
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
42
Nut
GU92630105
£1,68 Unit Price incl. VAT
43
Washer
GU95000205
£0,96 Unit Price incl. VAT
44
Gasket PVC
GU00823931080
£10,62 Unit Price incl. VAT
45
Plate
GU28585447
Not Available
46
Washer
GU95100123
£1,49 Unit Price incl. VAT
47
screw
GU98230612
£1,36 Unit Price incl. VAT
48
Rearview mirror
GU17769861
Not Available

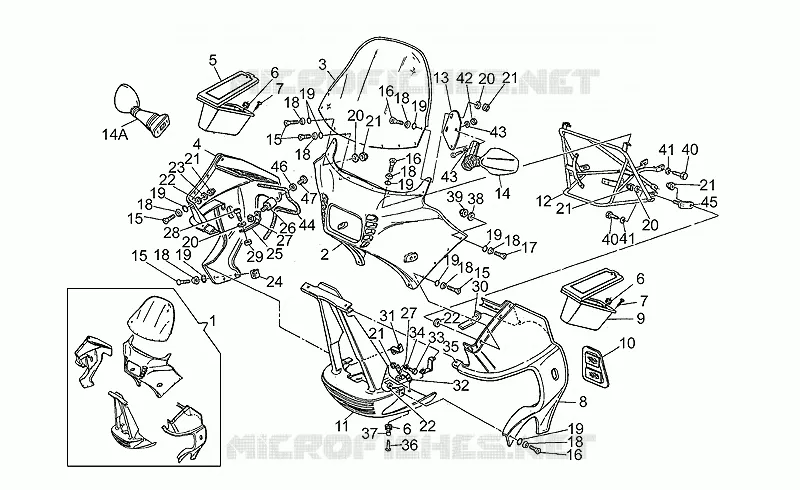

Find the detailed Body I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
