1
Engine displacement
850
2
Model
850-T3
3
Year
1981
4
Trim
T3 e Derivati Calif./T4/Pol./CC/PA
5
Parts Catalog
Front LH/rear brake system
6
Parts Diagram
Parts Catalog
RH Front brake system
by
Handlebar - Controls
Front LH/rear brake system
1
2
3
4
5
6
7
7
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
19
19
20
21
22
23
24
24
25
25
26
27
29
30
30
31
31
31
32
33
34
34
34
35
36
36
37
37
38
39
40
41
42
43
44
45
46
47
48
49
49
50
51
52
53
54
55
56
57
57
58
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
74
1
Brake lever
GU17677050
Not Available
2
Bushing
GU17252050
£2,40 Unit Price incl. VAT
3
Rubber spacer
GU14251001
£3,65 Unit Price incl. VAT
4
Nut
GU92701120
£2,00 Unit Price incl. VAT
5
Washer
GU95100409
Not Available
6
screw
GU98053660
£2,40 Unit Price incl. VAT
7
Nut
GU92602206
£1,68 Unit Price incl. VAT
8
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
9
Split pin
GU95500222
£1,26 Unit Price incl. VAT
10
Washer
GU95129110
Not Available
11
Pin
GU95770265
Not Available
12
Brake m.cyl. rod assy
GU17675051
Not Available
13
Tie rod
GU17675151
£36,88 Unit Price incl. VAT
14
Fork
GU95740175
£65,20 Unit Price incl. VAT
15
Nut
GU92690073
Not Available
16
Washer 7,5x13x1
GU95100173
£0,95 Unit Price incl. VAT
17
Spring washer
GU95129130
£10,73 Unit Price incl. VAT
18
Brake calipers decal
GU14654900
Not Available
19
Washer
GU95000206
£1,02 Unit Price incl. VAT
20
Pads (pair)
GU18654660
Not Available
20
Pads (pair) Frendo 222
GU28654601
£26,81 Unit Price incl. VAT
21
Pump control lever
GU17667551
Not Available
22
Spring
GU17667651
£10,81 Unit Price incl. VAT
23
screw
GU98620440
Not Available
24
Spring washer
GU95021108
£1,13 Unit Price incl. VAT
25
Nut
GU92602208
Not Available
26
Rear master cylinder
GU29667000
Not Available
27
Pump cover
GU18667450
Not Available
29
pipe
GU17658550
Not Available
30
Oil pipe screw *
GU95990028
£14,99 Unit Price incl. VAT
31
Gasket
GU25656100
£1,57 Unit Price incl. VAT
32
Distributor
GU14668555
Not Available
32
Distributor
GU28668145
£43,91 Unit Price incl. VAT
32
Rear divider
GU18658560
Not Available
33
Switch
GU63657000
£54,85 Unit Price incl. VAT
34
Notched washer
GU95021106
Not Available
35
pipe
GU17657550
Not Available
35
Flexible pipe
GU17655451
Not Available
36
Hose clamp
GU62436500
Not Available
36
Ring
GU17658260
£1,58 Unit Price incl. VAT
37
Hose clamp
GU17658360
Not Available
37
Snap ring
GU90716142
£1,22 Unit Price incl. VAT
38
screw
GU98054314
£0,49 Unit Price incl. VAT
39
Pipe
GU17658650
Not Available
40
Brake caliper d.48
GU18653060
Not Available
40
Brake caliper
GU28652301
Not Available
41
screw
GU98054530
£1,91 Unit Price incl. VAT
42
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT
43
Rear brake caliper brcket
GU18635860
Not Available
44
Pipe
GU17658750
Not Available
45
Piston ring
GU17659650
£0,80 Unit Price incl. VAT
46
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
47
U-bolt
GU93301313
£74,62 Unit Price incl. VAT
48
Pipe guide
GU17659750
Not Available
49
Ring
GU91551120
£1,38 Unit Price incl. VAT
50
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
51
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
52
Brake hose
GU17658860
£46,37 Unit Price incl. VAT
52
Flexible brake line
GU17658850
£81,00 Unit Price incl. VAT
53
screw
GU98054312
£1,02 Unit Price incl. VAT
54
Brake fuid pipe
GU17658950
Not Available
55
RH front brake caliper
GU28653001
Not Available
55
LH front brake caliper
GU18652201
Not Available
55
Brake caliper
GU28652301
Not Available
56
screw
GU98052545
£2,47 Unit Price incl. VAT
57
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT
58
Clearance washer 0,5 mm
GU95100332
£1,42 Unit Price incl. VAT
58
Clearance washer 0,8 mm
GU95100333
£0,52 Unit Price incl. VAT
59
Washer 10,5X18X0,8
GU95129180
£1,02 Unit Price incl. VAT
60
Nut
GU92602210
Not Available
61
screw
GU98054530
£1,91 Unit Price incl. VAT
62
Pads (pair) Frendo 222
GU28654601
£26,81 Unit Price incl. VAT
63
Brake caliper cover
GU17654760
Not Available
64
Pump revision kit
GU17659350
£96,00 Unit Price incl. VAT
65
Bleeder+cap
GU17659260
£33,50 Unit Price incl. VAT
66
Pins+Caliper springs
GU14659100
£17,95 Unit Price incl. VAT
67
Brake caliper rev. kit
GU14659000
£58,19 Unit Price incl. VAT
67
Brake caliper rev. kit
GU18659050
Not Available
68
B.l. switch wiring
GU17747550
Not Available
69
Cap
GU12735100
£2,12 Unit Price incl. VAT
70
Pads kit
GU14659450
Not Available
71
Pipe guide
GU18659750
Not Available
72
Brake calipers decal
GU14652700
Not Available
73
Spring
GU94322185
£10,28 Unit Price incl. VAT
74
Cover
GU14498550
Not Available

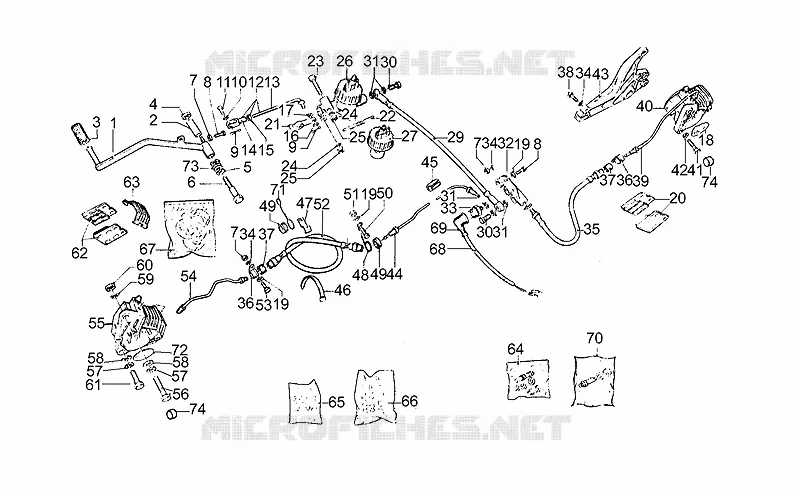

Find the detailed Front LH/rear brake system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
