1
Engine displacement
850
2
Model
850-T3
3
Year
1979
4
Trim
T3 e Derivati Calif./T4/Pol./CC/PA
5
Parts Catalog
Clutch
6
Parts Diagram
Parts Catalog
Crankcase
by
Oil pump
Clutch
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Clutch spring
GU13084100
£8,09 Unit Price incl. VAT
2
Disc
GU12082901
Not Available
3
Clutch disc
GU28084460
Not Available
4
Intermediate plate
GU12082300
£76,38 Unit Price incl. VAT
5
Cup
GU12082800
£75,25 Unit Price incl. VAT
6
Rod
GU14085700
£65,41 Unit Price incl. VAT
7
Bush
GU14085900
£2,48 Unit Price incl. VAT
8
Inner body
GU14086000
£82,28 Unit Price incl. VAT
9
Thrust bearing
GU12087001
Not Available
10
Outer body
GU14086100
£71,74 Unit Price incl. VAT
11
O-ring 17,13x2,62
GU90706170
£2,00 Unit Price incl. VAT
12
Clutch relese shaft
GU14090202
£101,22 Unit Price incl. VAT
13
Lever return spring
GU94321105
£1,94 Unit Price incl. VAT
14
Adjuster screw
GU14090400
£42,74 Unit Price incl. VAT
15
Nut M8x1
GU92602508
Not Available
16
Pin 7x39
GU95780271
Not Available
17
Split pin
GU95500222
£1,26 Unit Price incl. VAT
18
Clutch cable
GU17093050
Not Available
19
Cap
GU17093850
Not Available

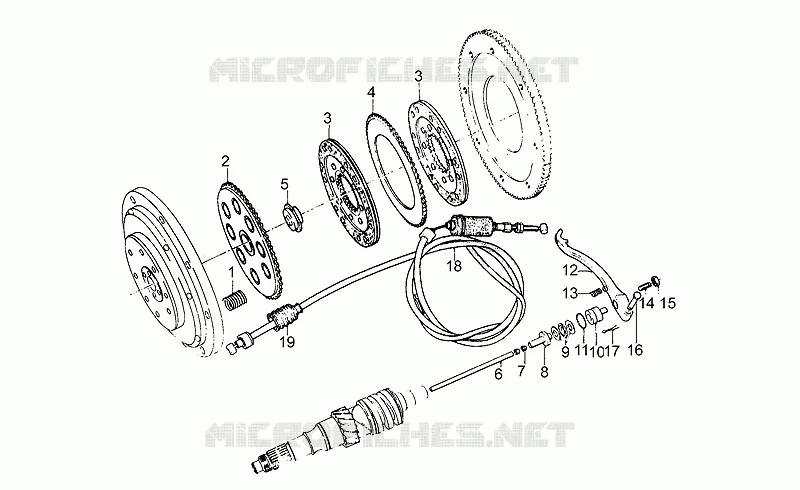

Find the detailed Clutch MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
