1
Engine displacement
850
2
Model
850-T3
3
Year
1979
4
Trim
T3 e Derivati Calif./T4/Pol./CC/PA
5
Parts Catalog
Body
6
Parts Diagram
Parts Catalog
Fairing 850T4
by
Body 850T3 California
Body
1
2
3
4
5
6
7
7
8
9
10
11
12
13
13
13
14
14
14
14
14
14
14
15
15
15
16
17
17
17
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
44
45
46
47
48
49
50
50
51
52
53
54
55
56
57
1
Fuel tank
GU171002651
Not Available
2
Tank cover, blank
GU141040551
£76,14 Unit Price incl. VAT
3
Locks
GU14736856
Not Available
4
Tab
GU18105001
Not Available
5
Hose clamp
GU19104950
£1,76 Unit Price incl. VAT
6
Decal "Moto Guzzi"
GU14917300
Not Available
7
Clip
GU14105100
Not Available
8
RH fuel cock
GU17105460
£14,34 Unit Price incl. VAT
9
LH fuel cock
GU17105461
£14,60 Unit Price incl. VAT
10
Gasket
GU90714103
Not Available
11
Front mudguard
GU174344401
Not Available
12
Cover
GU93180080
£1,98 Unit Price incl. VAT
12
Splash guard
GU14438750
£36,86 Unit Price incl. VAT
13
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
13
Stud bolt
GU96508021
£24,73 Unit Price incl. VAT
14
Washer
GU95000206
£1,02 Unit Price incl. VAT
15
Rubber spacer
GU93110060
£1,09 Unit Price incl. VAT
16
Washer 6,4x12x1,2
GU95100141
£1,02 Unit Price incl. VAT
17
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
18
screw
GU98054210
£0,43 Unit Price incl. VAT
19
Spring washer 5,3X10X0,5
GU95129100
£0,58 Unit Price incl. VAT
20
Tank cap
GU28103946
£62,90 Unit Price incl. VAT
21
Bracket
GU141022551
Not Available
22
Rubber spacer
GU93180706
£3,06 Unit Price incl. VAT
23
plate
GU141012551
£12,83 Unit Price incl. VAT
23
plate
GU14101270
Not Available
24
screw
GU98202525
Not Available
25
Spacer
GU91180608
£1,28 Unit Price incl. VAT
26
Rear mudguard
GU18437051
Not Available
27
screw
GU98052440
£1,76 Unit Price incl. VAT
28
Washer
GU95004208
£0,70 Unit Price incl. VAT
29
Spacer
GU91180816
Not Available
30
Nut
GU92602208
Not Available
31
Cover
GU93180105
£1,78 Unit Price incl. VAT
32
Saddle
GU18460650
Not Available
33
Rod
GU17462750
Not Available
34
Pad
GU14103800
Not Available
35
screw M8x22
GU98054422
£1,02 Unit Price incl. VAT
36
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
37
Nut
GU92630108
£1,02 Unit Price incl. VAT
38
Pillion grab bar
GU17464300
Not Available
39
RH side panel
GU17476250
Not Available
40
Rubber spacer
GU91551082
Not Available
41
Rubber spacer
GU14461400
Not Available
42
Net panel (r)
GU17925050
Not Available
43
Plate
GU39922200
£1,02 Unit Price incl. VAT
44
Name plate "850 T4"
GU17922042
Not Available
44
Name plate "850 T3"
GU17922050
Not Available
45
LH side panel
GU17476356
Not Available
45
LH side panel
GU17476357
Not Available
45
LH side panel
GU17476342
Not Available
46
Net panel (l)
GU17925150
Not Available
47
Fixing snap
GU14102600
£16,15 Unit Price incl. VAT
48
Front U-bolt
GU17434650
Not Available
48
Front U-bolt
GU17434642
Not Available
49
Rear U-bolt
GU17435000
Not Available
49
Front U-bolt
GU17435060
Not Available
50
screw
GU98270627
Not Available
51
Notched washer
GU95021106
Not Available
52
Nut
GU92602206
£1,68 Unit Price incl. VAT
53
U-bolt
GU93301313
£74,62 Unit Price incl. VAT
54
Decal set
GU17923342
Not Available
54
Decal set
GU18923303
Not Available
55
Fairlead
GU91551102
£1,90 Unit Price incl. VAT
56
Rubber spacer 8x15
GU91551081
£1,70 Unit Price incl. VAT
57
Pad
GU93180070
Not Available

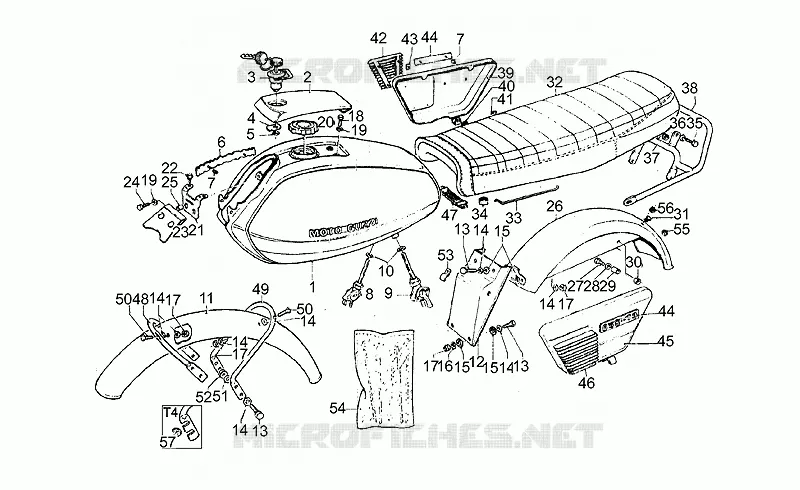

Find the detailed Body MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
