1
Engine displacement
850
2
Model
850-T3
3
Year
1979
4
Trim
T3 e Derivati Calif./T4/Pol./CC/PA
5
Parts Catalog
Carburettors
6
Parts Diagram
Parts Catalog
Gear box
by
Crankcase
Carburettors
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
21
22
24
24
25
25
26
27
29
30
31
32
33
34
35
36
37
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
55
56
58
59
60
61
62
63
65
66
68
69
70
71
72
73
74
1
Gasket
GU14115500
£8,15 Unit Price incl. VAT
2
RH intake manifold
GU14115002
Not Available
3
LH intake manifold
GU14115003
Not Available
4
screw
GU98326009
£2,03 Unit Price incl. VAT
5
Washer 6,25x10x1,5
GU95100116
£1,60 Unit Price incl. VAT
6
screw
GU98620435
Not Available
7
Washer
GU90716083
Not Available
8
Washer
GU95004208
£0,70 Unit Price incl. VAT
9
Plate
GU14115401
£13,43 Unit Price incl. VAT
10
Rubber spacer 8x15
GU91551081
£1,70 Unit Price incl. VAT
11
Carburettor RH
GU17112650
Not Available
12
Carburettor LH
GU18112651
Not Available
13
Throttle cable
GU18117560
£16,75 Unit Price incl. VAT
14
Starter lever
GU17133151
Not Available
15
RH choke cable
GU17133560
Not Available
16
Choke cable
GU17134050
£15,58 Unit Price incl. VAT
17
Air intake pipe
GU17114450
Not Available
18
screw
GU98054210
£0,43 Unit Price incl. VAT
19
Notched washer
GU95021105
£1,26 Unit Price incl. VAT
20
Fuel pipe
GU17106550
Not Available
21
Hose clamp
GU61108400
£0,72 Unit Price incl. VAT
22
Carburettor gasket kit
GU17939950
Not Available
24
Wire tensioner screw
GU12937200
£5,36 Unit Price incl. VAT
25
Nut
GU12937300
Not Available
26
screw
GU13937900
Not Available
27
Starter device cover
GU17937450
Not Available
29
Spring
GU13937600
£2,68 Unit Price incl. VAT
30
Starter valve
GU13937800
£12,94 Unit Price incl. VAT
31
Adj.min.eng.speed screw
GU13936200
Not Available
32
Spring
GU13936300
£1,14 Unit Price incl. VAT
33
Gas valve adjuster screw
GU13936600
Not Available
34
Spring
GU13936700
Not Available
35
screw
GU13932800
Not Available
36
Washer
GU13932900
Not Available
37
Gas valve cover
GU13935000
Not Available
39
Spring
GU13937100
Not Available
40
Conical pin clip
GU55938585
Not Available
41
Gas valve
GU14937501
Not Available
42
Conical pin
GU14937701
Not Available
43
Plate
GU14936800
Not Available
44
Hose clamp
GU14938700
Not Available
45
Insulating reduction
GU14938900
Not Available
46
screw
GU14938600
Not Available
47
Fuel pump
GU17938900
Not Available
48
Piston
GU17939000
Not Available
49
Valve
GU17939100
Not Available
50
Valve holder
GU17939200
Not Available
51
Spring
GU17939300
Not Available
52
Jetholder
GU17939400
Not Available
53
Main jet
GU17935750
Not Available
55
Cover
GU13933700
Not Available
56
Starter jet
GU13936000
Not Available
58
Needle valve
GU13935500
Not Available
59
Idle jet 50
GU66935910
Not Available
60
Jet Needle
GU13934800
£6,84 Unit Price incl. VAT
61
Fuel pipe union cap
GU13934600
£1,96 Unit Price incl. VAT
62
Fuel filter
GU43934000
£2,52 Unit Price incl. VAT
63
Cap fixing screw
GU10934900
Not Available
65
Float
GU14933000
Not Available
66
Float pin
GU13933100
£17,57 Unit Price incl. VAT
68
Float chamber
GU13934400
Not Available
69
Fuel pump cpl.
GU14938800
Not Available
70
RH protection
GU18941050
Not Available
71
RH protection
GU18941450
Not Available
72
Rubber spacer
GU18941750
£11,78 Unit Price incl. VAT
73
Cover
GU93180080
£1,98 Unit Price incl. VAT
74
Washer
GU18941850
Not Available

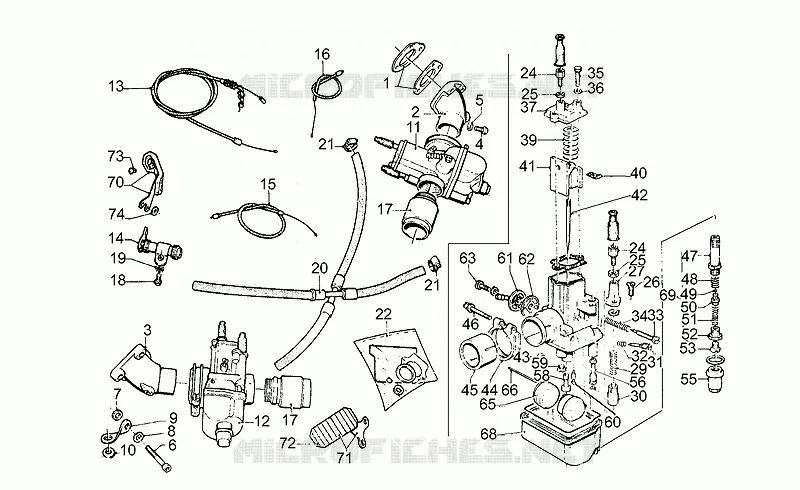

Find the detailed Carburettors MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
