Engine displacement
100
2
Model
SCARABEO
3
Year
2001
4
Trim
Scarabeo 4T E2
5
Parts Catalog
Fuel tank II
6

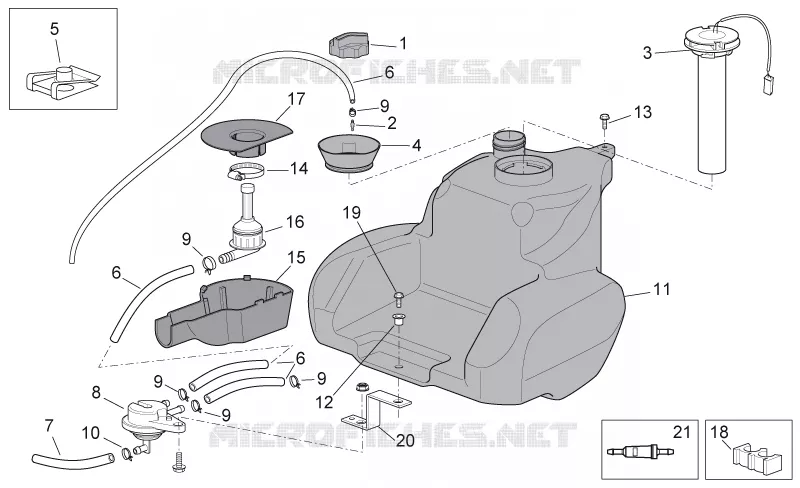

Parts Diagram
Parts Catalog
Fuel tank I
by
Air box
Fuel tank II
1
2
3
4
5
6
6
6
7
8
9
9
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Fuel filler cap
AP8201757
Not Available
2
2-way union
AP8101944
£5,48 Unit Price incl. VAT
3
Fuel level sensor
AP8224452
Not Available
4
Fuel collector rubber
AP8144187
£12,23 Unit Price incl. VAT
5
Clip M6
AP8102376
Not Available
6
Fuel pipe 5,5x10
AP8120952
Not Available
7
Pipe, grey 3x8
AP8120955
£18,10 Unit Price incl. VAT
8
Fuel cock
AP8202326
Not Available
9
Hose clamp D9,1*
AP8102377
£2,45 Unit Price incl. VAT
10
Hose clamp D8
AP8120179
£1,27 Unit Price incl. VAT
11
Fuel tank
AP8258691
Not Available
12
T bush
AP8121795
£2,63 Unit Price incl. VAT
13
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
14
Hose clamp D16-24x8*
AP8101573
£2,95 Unit Price incl. VAT
15
Fuel chamber
AP8258692
£14,35 Unit Price incl. VAT
16
Union cpl.
AP8104071
£26,05 Unit Price incl. VAT
17
Maintenance
AP8258693
£14,84 Unit Price incl. VAT
18
Cable-guide D8
AP8201808
£3,25 Unit Price incl. VAT
19
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
20
Cock support clamp
AP8234211
£9,90 Unit Price incl. VAT
21
Vacuum filter
624522
£5,26 Unit Price incl. VAT
