1
Engine displacement
1200
2
Model
SPORT
3
Year
2006
4
Trim
Sport
5
Parts Catalog
Stands
6
Parts Diagram
Parts Catalog
Timing system
by
Taillight
Stands
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
1
Lateral stand
977079
£253,69 Unit Price incl. VAT
2
Stand plate
977080
£58,84 Unit Price incl. VAT
3
Button for side stand
639542
£30,10 Unit Price incl. VAT
4
Hex socket screw
GU98612216
£1,02 Unit Price incl. VAT
5
Washer 5,3x8,9x2,4
GU95020105
£0,82 Unit Price incl. VAT
6
Central stand fixing screw
AP8121994
£18,83 Unit Price incl. VAT
7
Curved spring washer *
AP8150292
£1,88 Unit Price incl. VAT
8
Low nut M10x1,25
AP8152001
£2,63 Unit Price incl. VAT
9
Stand spring protection
AP8102524
£25,45 Unit Price incl. VAT
10
Lateral stand spring
AP8221204
£10,78 Unit Price incl. VAT
11
Internal lateral stand spring
AP8221211
£2,69 Unit Price incl. VAT
12
Hex socket screw M12x35
GU98231235
£7,60 Unit Price incl. VAT
13
Washer 13x24x2,5
GU95008313
£1,26 Unit Price incl. VAT
14
Thermal sheath
GU00823923140
£45,62 Unit Price incl. VAT
15
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
16
Lateral stand
977093
£488,47 Unit Price incl. VAT
17
Stand plate
977408
£138,47 Unit Price incl. VAT

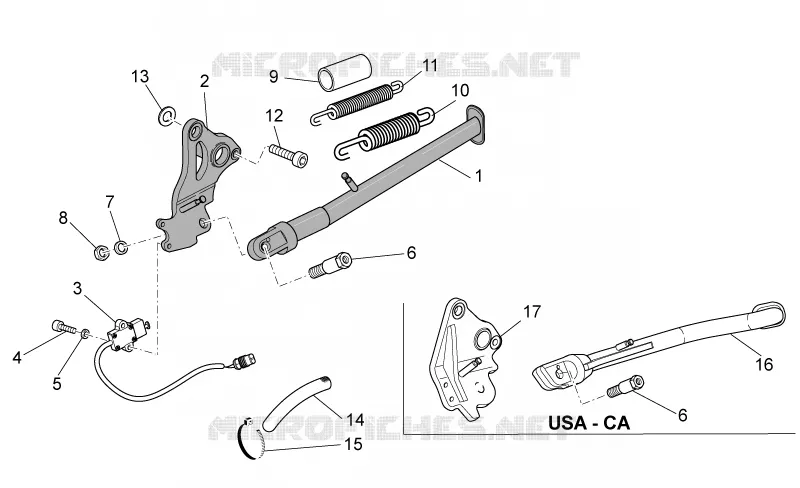

Find the detailed Stands MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
