Parts Catalog
Saddle-Central bod
6
Parts Diagram
Parts Catalog
Oil filters
by
Rear body - Rear fairing
Saddle-Central bod
1
2
3
3
4
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
1
Two-seat saddle
977831
£286,54 Unit Price incl. VAT
2
RH side panel, black
GU05570232
£45,89 Unit Price incl. VAT
2
RH body panel blank
GU05570230
£143,86 Unit Price incl. VAT
2
RH side panel, red
GU05570231
£179,32 Unit Price incl. VAT
3
Gasket
AP8144538
Not Available
4
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT
5
LH side panel, black
GU05570432
£144,37 Unit Price incl. VAT
5
LH side panel, red
GU05570431
£183,12 Unit Price incl. VAT
5
LH body panel blank
GU05570430
Not Available
6
Saddle lock
GU05466830
£132,94 Unit Price incl. VAT
7
Saddle release cable
AP8102914
£22,55 Unit Price incl. VAT
8
Pass.saddle connecting plate
AP8102913
£30,04 Unit Price incl. VAT
9
Hex socket screw M6x25
GU98370625
£5,23 Unit Price incl. VAT
10
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
11
Lock nut M22x1,5
AP8102523
£9,53 Unit Price incl. VAT
12
Helmet lock cable
AP8102502
£13,54 Unit Price incl. VAT
13
RH side fairing decal
GU05573830
£10,64 Unit Price incl. VAT
14
LH side fairing decal
GU05573831
£10,64 Unit Price incl. VAT
15
Rubber spacer
GU32461810
£5,93 Unit Price incl. VAT
16
Rubber spacer
GU32461610
Not Available
17
Saddle cover, black
977754Y02
£350,82 Unit Price incl. VAT
17
Cover pillion rider seat blank
977754
£246,16 Unit Price incl. VAT
17
Cover pillion rider seat red
977754Y01
£350,82 Unit Price incl. VAT
18
Hex socket screw M6x16 inox
GU98370616
£2,48 Unit Price incl. VAT

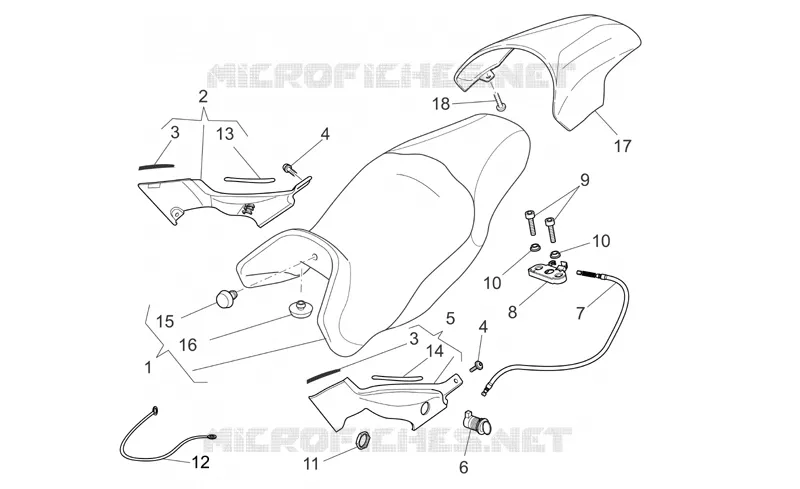

Find the detailed Saddle-Central bod MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
