Front fork for Sport 8V from 2010

Free shipping for all orders to United Kingdom over £150! See conditions.

Front fork

1

Front fork "Marzocchi"

978282

Not Available

2

RH hub cpl. "Marzocchi"

981097

£323,04 Unit Price incl. VAT

3

LH hub cpl. "Marzocchi"

981096

£334,57 Unit Price incl. VAT

4

RH sleeve D. 45

981094

£196,13 Unit Price incl. VAT

5

LH sleeve D. 45

981095

£192,67 Unit Price incl. VAT

6

Upper bush

GU03530528

Not Available

7

Cup

GU03530527

Not Available

8

Gasket ring

GU03530526

Not Available

9

Stop ring

GU03530525

Not Available

10

Dust cover

GU03530524

Not Available

11

Hex socket screw M10x35

GU98682535

£5,08 Unit Price incl. VAT

12

Washer 14x10,5x1,5

GU05530535

Not Available

13

Hex socket screw M6x40

GU98680340

£1,26 Unit Price incl. VAT

14

Pad

978176

£81,76 Unit Price incl. VAT

15

RH shock absorber "REBOUND"

978175

£132,67 Unit Price incl. VAT

16

Return nut

GU03530513

Not Available

17

Washer

978178

£27,47 Unit Price incl. VAT

18

Preload tube

978177

£27,91 Unit Price incl. VAT

19

Spring

GU05526630

£108,22 Unit Price incl. VAT

20

Lower bush

GU03530510

Not Available

21

Sleeve D. 45

981098

Not Available

22

Plug cpl. "REBOUND"

978180

£391,13 Unit Price incl. VAT

23

Screw with OR

GU03530506

Not Available

24

Sticker "REBOUND"

978184

£26,38 Unit Price incl. VAT

25

Dowel

978183

Not Available

26

Spring

978182

Not Available

27

Ball

978181

Not Available

28

O-ring

GU30530561

Not Available

29

Adjuster screw

GU30530577

Not Available

30

O-ring

GU01530593

Not Available

31

Plug cpl. "COMPRESSION"

978187

£391,13 Unit Price incl. VAT

32

Sticker "COMPRESSION"

978185

£26,38 Unit Price incl. VAT

33

LH shock absorber "COMPRESSION"

978186

£123,44 Unit Price incl. VAT

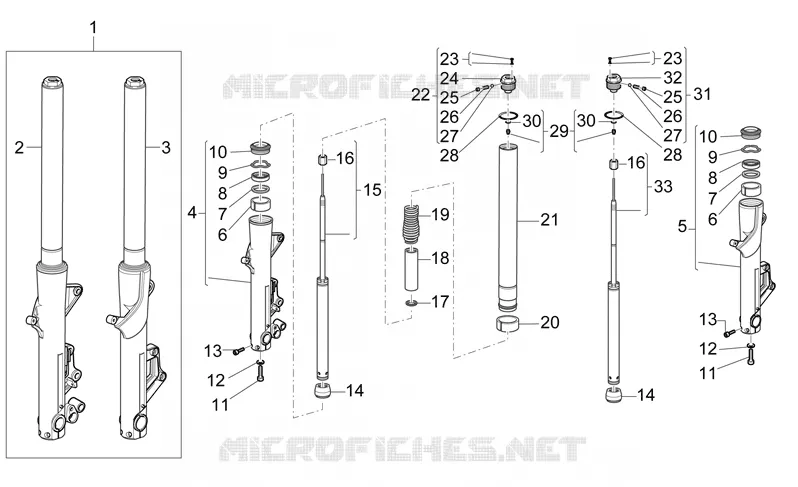

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
