Crank-case I for MOTO GUZZI LAVERDA SCARABEO Sport 8V from 2008

Free shipping for all orders to United Kingdom over £150! See conditions.

Crank-case I

1

Crankcase black

976539

Not Available

2

Pin

411209

£4,56 Unit Price incl. VAT

3

Stud bolt M8x66

GU96508066

£50,56 Unit Price incl. VAT

4

Gasket ring

GU90405367

£35,53 Unit Price incl. VAT

5

Washer 8,4X13X0,8

GU14615901

£2,48 Unit Price incl. VAT

6

Coupling bush

GU12018900

£10,75 Unit Price incl. VAT

7

Stud bolt M8x75

GU96508075

£13,44 Unit Price incl. VAT

8

Flanged nut M8

GU92660021

£1,60 Unit Price incl. VAT

9

Pin

GU95512081

£4,34 Unit Price incl. VAT

10

Pin

560110

£10,10 Unit Price incl. VAT

11

Gasket

GU01154230

£2,34 Unit Price incl. VAT

12

Hex screw M8x25

GU98084425

£1,02 Unit Price incl. VAT

13

Spring washer 8x15x0,3

GU61270300

£1,70 Unit Price incl. VAT

14

Hex socket screw M6x35

GU98680335

£0,35 Unit Price incl. VAT

15

Gasket

GU01003651

£14,74 Unit Price incl. VAT

16

Flange black

976502

Not Available

17

Gasket

GU05003630

£15,31 Unit Price incl. VAT

18

Oil sump black

976486

Not Available

19

Complete flange

874213

Not Available

20

Hex socket screw

AP4ADN000007

Not Available

21

Hex socket screw M6x60

GU98680360

£2,47 Unit Price incl. VAT

22

Oil unload plug M10x1

GU31003766

£15,77 Unit Price incl. VAT

23

Gasket 10x18x1,5

GU01528930

£4,21 Unit Price incl. VAT

24

Oil level plug

GU05004930

£13,93 Unit Price incl. VAT

25

O-ring 17,86X2,62

GU90706178

£0,98 Unit Price incl. VAT

26

Seal ring (o-ring)

1A008362

Not Available

27

Gasket

874257

£14,92 Unit Price incl. VAT

28

Hex socket screw M6x40

GU98680340

£1,26 Unit Price incl. VAT

29

Screw w/ flange

AP8152291

£1,94 Unit Price incl. VAT

30

Engine cpl.

976961

Not Available

31

Oil plug

GU12022600

£36,13 Unit Price incl. VAT

32

O-ring 20,24X2,62

GU90706203

£1,39 Unit Price incl. VAT

33

Cover

GU95980216

£12,43 Unit Price incl. VAT

34

Oil recovery disc

874134

£19,88 Unit Price incl. VAT

35

TBCIC Screw M5x12

015935

Not Available

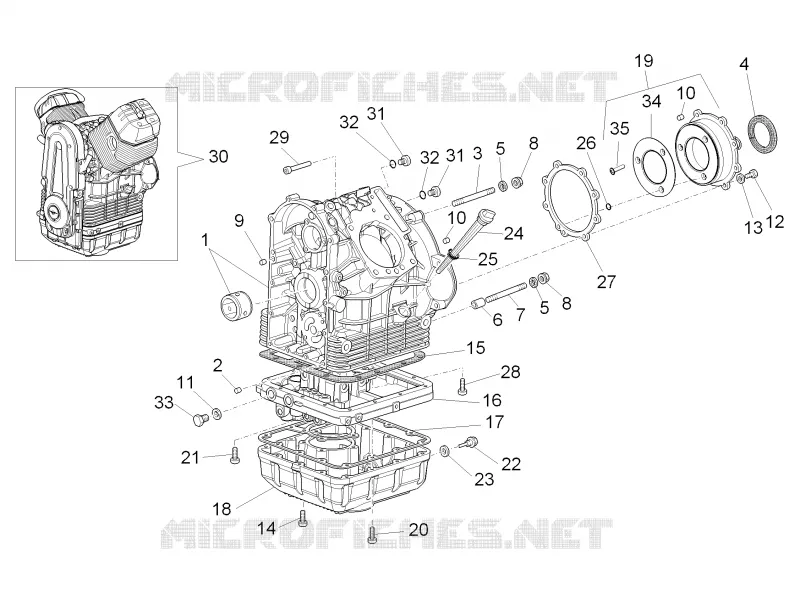

Find the detailed Crank-case I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
