1
Engine displacement
50
2
Model
SCARABEO
3
Year
2001
4
Trim
Scarabeo Ditech
5
Parts Catalog
Top box
6
Parts Diagram
Parts Catalog
Seat - Carrier
by
Rear headlight - Top box

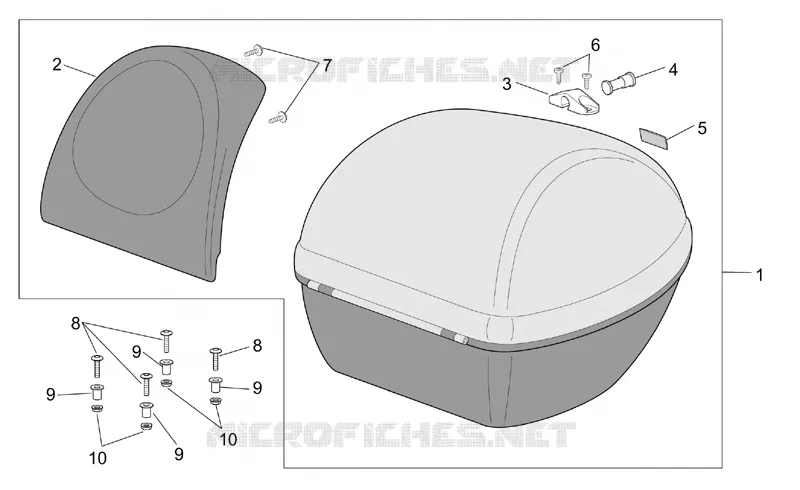

Top box
1
2
3
4
5
6
7
8
8
9
9
9
9
10
10
1
Top box, techno grey
AP8268119
Not Available
1
Top box, cyan
AP8258614
Not Available
1
Top box, blue
AP8258918
Not Available
1
Top box, V.white
AP8258358
Not Available
1
Top box, white
AP8268131
Not Available
1
Top box, darkness black
AP8268107
Not Available
1
Top box, beige/silver
AP8258993
Not Available
1
Top box, blue
AP8258896
Not Available
1
Top box, blue
AP8258398
Not Available
1
Top box, green
AP8258865
Not Available
1
Top box, red
AP8258071
Not Available
1
Top box, white
AP8258876
Not Available
1
Top box, A.lemon
AP8258481
Not Available
1
Top box, black
AP8258647
Not Available
1
Top box, orange
AP8258617
Not Available
1
Top box, black
AP8268142
Not Available
2
Seat cushion
AP8229331
Not Available
3
Top box lock u-bolt
AP8221335
Not Available
4
Lock pin
AP8221334
Not Available
5
"Aprilia" dataplate
AP8167591
Not Available
6
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
7
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
8
Hex socket screw M6x35
AP8152136
£1,27 Unit Price incl. VAT
9
T bush *
AP8121790
£1,88 Unit Price incl. VAT
10
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
