1
Engine displacement
50
2
Model
SCARABEO
3
Year
2001
4
Trim
Scarabeo Ditech
5
Parts Catalog

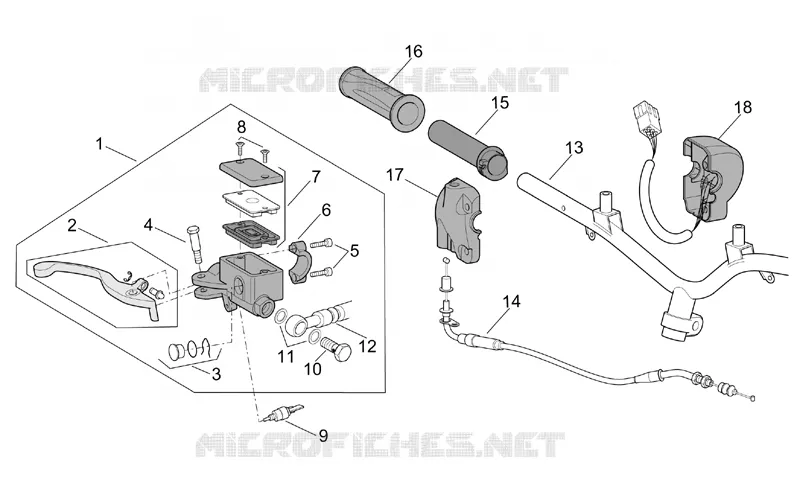

RH controls
6
Parts Diagram
Parts Catalog
Handlebar - Dashboard
by
LH Controls
RH controls
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Front master cilinder
AP8213434
Not Available
2
Front brake lever
AP8218273
Not Available
3
Master cyl.level window
AP8113414
Not Available
4
Front brake lever pin
AP8221231
Not Available
5
Cap screw
AP8213299
£3,38 Unit Price incl. VAT
6
Brake lever U-bolt
AP8113637
£33,77 Unit Price incl. VAT
7
Pump cover
AP8213475
£40,14 Unit Price incl. VAT
8
Pump cover screw
AP8213400
£5,28 Unit Price incl. VAT
9
stop Button
AP8127305
Not Available
10
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
11
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
12
Front brake hose
AP8213499
£86,92 Unit Price incl. VAT
13
Handlebar w phor ctng.
AP8218152
Not Available
14
Throttle cable
AP8214216
£34,87 Unit Price incl. VAT
15
Throttle pipe w/out hand grip
AP8218214
£14,41 Unit Price incl. VAT
16
Handgrip pair, black
AP8218579
Not Available
16
Handgrip pair, black
AP8218612
Not Available
17
RH light control cover
AP8218578
Not Available
18
RH lights sel. w/wiring
AP8224537
£17,65 Unit Price incl. VAT
18
RH lights sel. w/wiring
AP8224466
£121,85 Unit Price incl. VAT
18
RH lights sel. w/wiring
AP8224480
£121,85 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
