Engine displacement
50
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo Ditech
5
Parts Catalog
Rear electrical system
6
Parts Diagram
Parts Catalog
Front electrical system
by
Decal op.handbooks and plate set
Rear electrical system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Battery
AP8124637
Not Available
1
Battery
AP8112290
Not Available
2
Battery holder
AP8230535
£34,87 Unit Price incl. VAT
3
Fuel pump
854933
£359,80 Unit Price incl. VAT
4
Fuse 15A
AP8112176
Not Available
5
Rubber fuse box
AP8120754
£10,61 Unit Price incl. VAT
6
ECU
AP8224518
Not Available
6
ECU
AP8224415
Not Available
6
ECU
AP8224386
Not Available
7
Fuse 7,5A
AP8112244
Not Available
8
Oil pump
AP8222708
Not Available
9
Rubber fuse box
AP8112811
£11,53 Unit Price incl. VAT
10
Relay 12V-30A
AP8224462
£24,32 Unit Price incl. VAT
11
Fule pipe set cpl.
AP5RAR000215
Not Available
12
Diode
AP8212382
£16,38 Unit Price incl. VAT
13
Silent-block
AP8144061
£11,28 Unit Price incl. VAT
14
Fuel pump support
AP8234205
Not Available
15
Starter relay
AP8224057
£22,33 Unit Price incl. VAT
16
Relay rubber
AP8220546
£3,74 Unit Price incl. VAT
17
Rubber spacer *
AP8220283
£2,39 Unit Price incl. VAT
18
Main wiring harness
AP8224476
Not Available
18
Main wiring harness
AP8224549
Not Available
18
Main wiring harness
AP8224483
Not Available
18
Main wiring harness
AP8224366
Not Available
19
Pressure sensor
AP8224478
£43,55 Unit Price incl. VAT
20
Sensor support
AP8234210
Not Available
21
T bush
AP8121811
£1,27 Unit Price incl. VAT
22
Injection wiring
AP8127477
£90,50 Unit Price incl. VAT

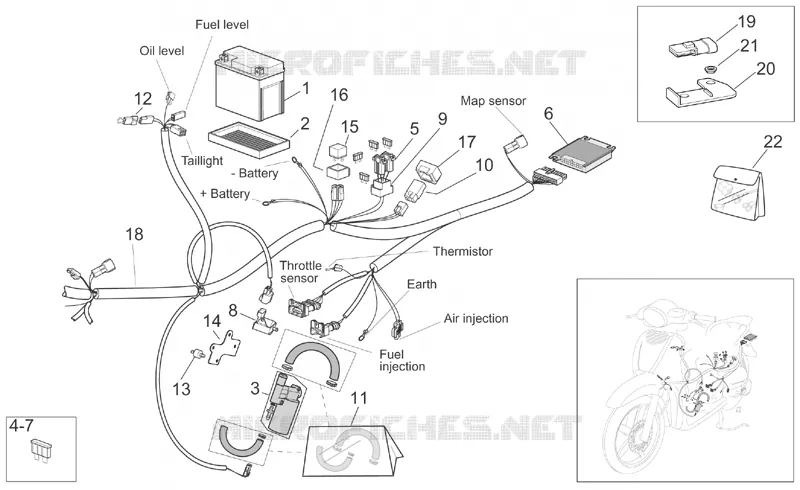

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
