1
Engine displacement
50
2
Model
SCARABEO
3
Year
2001
4
Trim
Scarabeo Ditech
5
Parts Catalog
Front fork
6
Parts Diagram
Parts Catalog
Foot rests - Lateral stand
by
R.shock absorber-connect. Rod
Front fork
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
1
Front fork
AP8223022
Not Available
2
Stem base
AP8223079
Not Available
2
Stem base
AP8223031
Not Available
3
Cap nut
AP8223090
Not Available
3
Cap nut
AP8203689
Not Available
4
Tube protection, pair
AP8203939
Not Available
4
Tube protection
AP8223081
Not Available
5
Gasket ring
AP8223082
£21,98 Unit Price incl. VAT
5
Gasket ring
AP8203744
Not Available
6
Sleeve plug
AP8203710
£28,46 Unit Price incl. VAT
6
Sleeve plug
AP8223098
£7,44 Unit Price incl. VAT
7
Plunger, complete
AP8223094
£254,95 Unit Price incl. VAT
7
Plunger, complete
AP8203716
Not Available
8
Screw w/ flange M8x25
AP8223087
£1,16 Unit Price incl. VAT
8
Screw w/ flange M8x25
AP8203717
Not Available
9
screw
AP8123947
Not Available
9
screw
AP8223088
Not Available
10
RH sleeve
AP8223033
Not Available
10
RH sleeve
AP8223083
Not Available
11
LH sleeve
AP8223089
Not Available
11
LH sleeve
AP8163020
Not Available
12
Gasket nylon
AP8223097
£2,29 Unit Price incl. VAT
13
Washer
AP8223096
£9,02 Unit Price incl. VAT
14
Rubber spacer
AP8223095
£5,65 Unit Price incl. VAT
15
Stroke limit stop
AP8223093
£15,97 Unit Price incl. VAT
16
Nut M8
AP8223092
£5,74 Unit Price incl. VAT
17
Washer
AP8223091
£8,92 Unit Price incl. VAT
18
Washer
AP8223086
Not Available
19
Return spring
AP8223085
Not Available
20
Bush
AP8223084
Not Available
21
Spring
AP8223080
Not Available
22
Dust cover
666051
£11,18 Unit Price incl. VAT

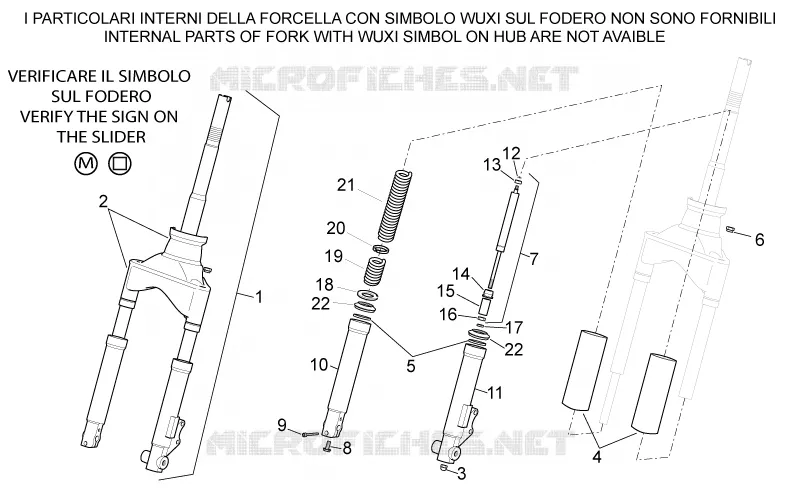

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
