Engine displacement
50
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo Ditech
5
Parts Catalog
Central body I
6

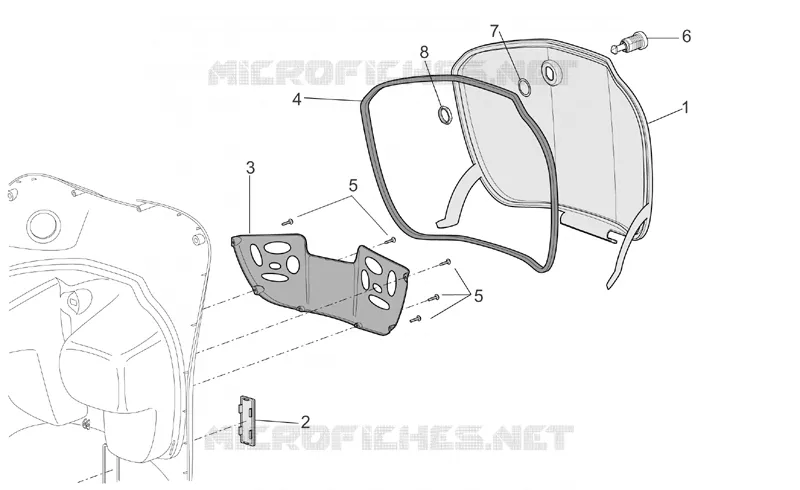

Parts Diagram
Parts Catalog
Front body IV
by
Central body II
Central body I
1
2
3
4
5
5
6
7
8
1
Glove comp.door, blue
AP8258916
Not Available
1
Glove comp.door, green
AP8258861
Not Available
1
Glove comp.door, white
AP8258403
Not Available
1
Glove comp.door, blue
AP8258894
Not Available
1
Glove comp.door, black
AP8258640
Not Available
1
Glove comp.door, beige
AP8258905
Not Available
1
Glove comp.door, silver
AP8268117
Not Available
1
Glove comp.door, white
AP8268129
Not Available
1
Glove comp.door, blue
AP8258405
Not Available
1
Glove comp.door, grey
AP8268105
Not Available
1
Glove comp.door, white
AP8258407
Not Available
1
Glove comp.door, red
AP8258408
Not Available
1
Glove comp.door, black
AP8268141
Not Available
1
Glove comp.door, cyan
AP8258439
Not Available
1
Glove comp.door, orange
AP8258453
Not Available
1
Glove comp.door, A.lemon
AP8258475
Not Available
2
Type appr.data cover, grey
AP8149605
Not Available
3
Glove box internal grille
AP8148736
£32,46 Unit Price incl. VAT
4
Top box weatherseal
AP8220407
£2,76 Unit Price incl. VAT
5
Screw w/ flange M3x12
AP8152334
£1,88 Unit Price incl. VAT
6
Box lock
AP8201390
Not Available
7
Notched washer
AP8221312
£1,88 Unit Price incl. VAT
8
Low nut M19x1*
AP8152194
£2,42 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
