Engine displacement
50
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo Ditech
5
Parts Catalog
Lock hardware kit
6
Parts Diagram
Parts Catalog
Decal op.handbooks and plate set
by
Engine
Lock hardware kit
1
2
3
4
5
6
7
8
9
10
11
12
13
13
13
14
15
16
16
17
18
19
20
1
Top box lock
AP8104602
£84,58 Unit Price incl. VAT
1
Top box lock
AP8202296
Not Available
2
Box lock
AP8201390
Not Available
2
Box lock
AP8104600
£88,28 Unit Price incl. VAT
3
Saddle lock
AP8202298
Not Available
3
Saddle lock
AP8104601
£59,76 Unit Price incl. VAT
4
Main switch - steering lock
AP8224523
Not Available
4
Main switch - steering lock
AP8224458
Not Available
5
Lock kit
AP8202350
£44,71 Unit Price incl. VAT
5
Lock kit
AP8202283
Not Available
6
Hex socket screw M6x16
AP8150137
£1,27 Unit Price incl. VAT
7
Shear rivet M6x17
AP8152140
£2,39 Unit Price incl. VAT
8
Main switch seal
AP8220386
£8,00 Unit Price incl. VAT
9
Notched washer
AP8221312
£1,88 Unit Price incl. VAT
10
Low nut M19x1*
AP8152194
£2,42 Unit Price incl. VAT
11
Aprilia milled key
AP8104185
Not Available
11
"Scarabeo" key w/out transpo.
AP8104598
£16,08 Unit Price incl. VAT
12
Nut M26x1
AP8225370
£3,97 Unit Price incl. VAT
13
screw 3,9x13
AP8225377
£1,16 Unit Price incl. VAT
14
Lock body
AP8202301
£15,31 Unit Price incl. VAT
15
Cam
AP8225376
£15,80 Unit Price incl. VAT
16
Maintenance
AP8234208
£43,08 Unit Price incl. VAT
17
Lever cpl.
AP8221338
£30,59 Unit Price incl. VAT
18
Spring
AP8221337
£15,14 Unit Price incl. VAT
19
Clip on kit
AP8202300
£70,85 Unit Price incl. VAT
20
Saddle lock hardware kit
AP8202299
£25,70 Unit Price incl. VAT

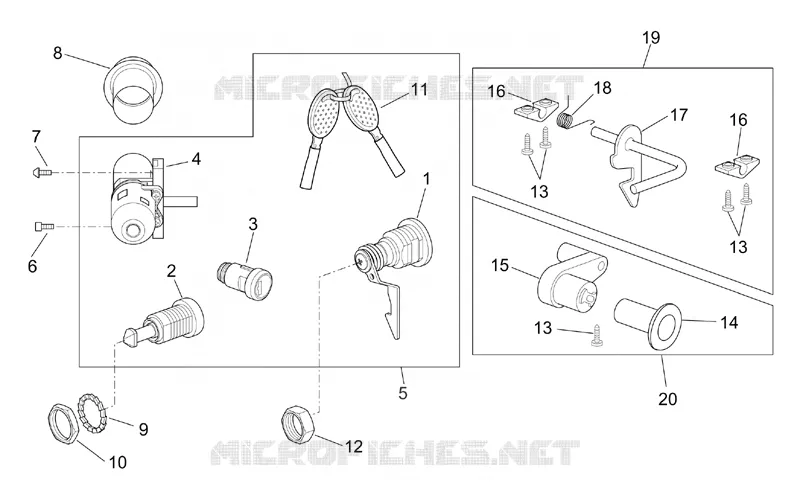

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
