Engine displacement
50
2
Model
SCARABEO
3
Year
2009
4
Trim
Scarabeo 4T 4V E2
5
Parts Catalog
Rear body I
6
Parts Diagram
Parts Catalog
Front body II
by
Engine
Rear body I
1
2
3
3
3
4
5
6
7
8
9
1
Hinge cover, grey
AP8268606
£16,78 Unit Price incl. VAT
2
Rear fairing, cyan
AP8269124
Not Available
2
Rear fairing, white
AP8268786
Not Available
2
Rear fairing, grey
AP8269102
Not Available
2
Rear fairing, green
AP8269142
Not Available
2
Rear fairing, black
AP8269089
Not Available
3
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
4
Bag holder hook
AP8239306
Not Available
5
T bush *
AP8121790
£1,88 Unit Price incl. VAT
6
Hex socket screw
AP8225369
£1,27 Unit Price incl. VAT
7
Washer 5,3X10X1
AP8150177
£0,06 Unit Price incl. VAT
8
Name plate "Scarabeo"
893234
£21,23 Unit Price incl. VAT
9
Decal "AGIP"
852029
Not Available

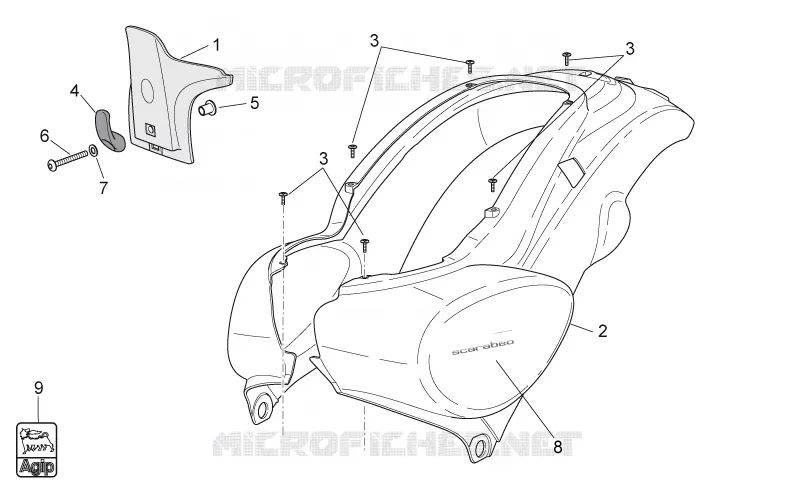

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
