Engine displacement
50
2
Model
SCARABEO
3
Year
2007
4
Trim
Scarabeo 4T 2V E2
5
Parts Catalog
Top box
6

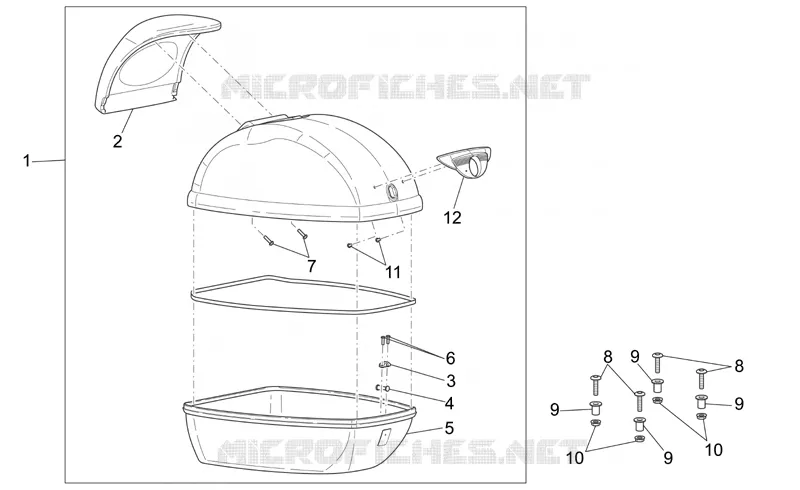

Parts Diagram
Parts Catalog
Rear body II
by
Front body II
Top box
1
2
3
4
5
6
7
8
8
9
9
9
9
10
10
11
12
1
Top box, black
AP8269020
Not Available
1
Top box, blue
AP8269015
Not Available
1
Top box, white
AP8269075
Not Available
1
Top box, red
AP8269021
Not Available
1
Top box, brown
AP8268676
Not Available
1
Top box, white
AP8268784
Not Available
1
Top box, green
AP8269023
Not Available
1
Top box, grey
AP8269100
Not Available
1
Top box, grey
AP8269017
Not Available
1
Top box, grey
AP8268771
Not Available
1
Top box, white a.
AP8268716
Not Available
1
Top box, cyan
AP8269125
Not Available
1
Top box, black
AP8269087
Not Available
1
Top box, green
AP8269139
Not Available
1
Top box v.giallo
AP8268797
Not Available
1
Top box, black
AP8268696
Not Available
2
Seat cushion
AP8269140
Not Available
2
Seat cushion
AP8269076
Not Available
2
Seat cushion
851793
Not Available
2
Seat cushion
AP8268677
Not Available
2
Seat cushion
AP8268651
Not Available
2
Seat cushion
AP8268697
Not Available
2
Seat cushion
AP8179970
Not Available
3
Top box lock u-bolt
AP8221335
Not Available
4
Lock pin
AP8221334
Not Available
5
Name plate "Aprilia" 30x15
854964
£7,30 Unit Price incl. VAT
6
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
7
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
8
Hex socket screw M6x35
AP8152136
£1,27 Unit Price incl. VAT
9
T bush *
AP8121790
£1,88 Unit Price incl. VAT
10
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
11
Self-tapping screw *
AP8150420
£1,88 Unit Price incl. VAT
12
Name plate
851949
£46,67 Unit Price incl. VAT
