Engine displacement
50
2
Model
SCARABEO
3
Year
2009
4
Trim
Scarabeo 4T 2V E2
5
Parts Catalog
Central body II
6
Parts Diagram
Parts Catalog
Cylinder head - valves
by
Drive shaft
Central body II
1
2
3
4
4
4
5
5
6
7
7
8
8
9
10
11
1
Inspection cover, green
AP8269133
Not Available
1
Inspection cover, white a
AP8268711
Not Available
1
Inspection cover, silver
AP8268765
Not Available
1
Inspection cover, black
AP8268691
Not Available
1
Inspection cover, blue
AP8179531
Not Available
1
Inspection cover, brown
AP8268671
Not Available
1
Inspection cover, cyan
AP8269117
Not Available
1
Inspection cover, grey
AP8269094
Not Available
1
Inspection cover, red
AP8179976
Not Available
1
Inspection cover, black
AP8269081
Not Available
1
Inspection cover, green
AP8184091
Not Available
1
Inspection cover, yellow
AP8268791
Not Available
1
Inspection cover, grey
AP8179964
Not Available
1
Inspection cover, black
AP8179953
£38,08 Unit Price incl. VAT
1
Inspection cover, white
AP8268778
Not Available
2
Low. prot.fairing, black
AP8179857
Not Available
3
Foot rest
AP8268605
Not Available
4
Screw w/ flange M5x12
AP8152302
Not Available
5
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT
6
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
7
Screw 4,2x20*
AP8150270
£0,98 Unit Price incl. VAT
8
Screw w/ flange M5x12
AP8152302
Not Available
9
Hex socket screw M6x20
AP8224470
£1,27 Unit Price incl. VAT
10
T bush
AP8221349
£4,93 Unit Price incl. VAT
11
Decal "First 50"
AP8267713
Not Available

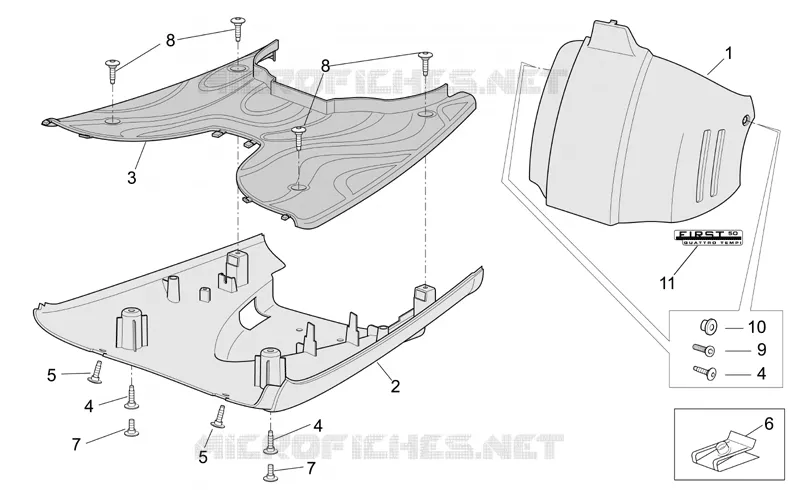

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
