Engine displacement
50
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo 4T 2V E2
5
Parts Catalog
Kick-start gear/starter motor
6
Parts Diagram
Parts Catalog
Front body II
by
Acc. - Top/cases, side cases
Kick-start gear/starter motor
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
1
Bush Ø8xØ12x8
431860
£1,43 Unit Price incl. VAT
2
Starter lever return spring
289495
£8,69 Unit Price incl. VAT
3
Elastic spring
830212
Not Available
4
Pinion starter
483537
£28,58 Unit Price incl. VAT
5
Starting shaft
831458
£30,05 Unit Price incl. VAT
6
Washer 16,3x23,8
433987
£0,60 Unit Price incl. VAT
7
Gasket
435251
£8,02 Unit Price incl. VAT
8
Circlip
006416
Not Available
9
Screw w/ flange M6x25
414837
Not Available
10
Complete gear unit
96922R
Not Available
11
Bush
286209
£2,64 Unit Price incl. VAT
12
Starter motor
96921R
£152,03 Unit Price incl. VAT
13
Wire
969347
£45,07 Unit Price incl. VAT
14
Flat washer 4,2x7,6x0,9
016404
Not Available
15
screw
018644
Not Available
16
Hex screw M6x22
031091
Not Available
17
Starter lever
286214
£37,08 Unit Price incl. VAT
18
Guard
286217
£29,41 Unit Price incl. VAT

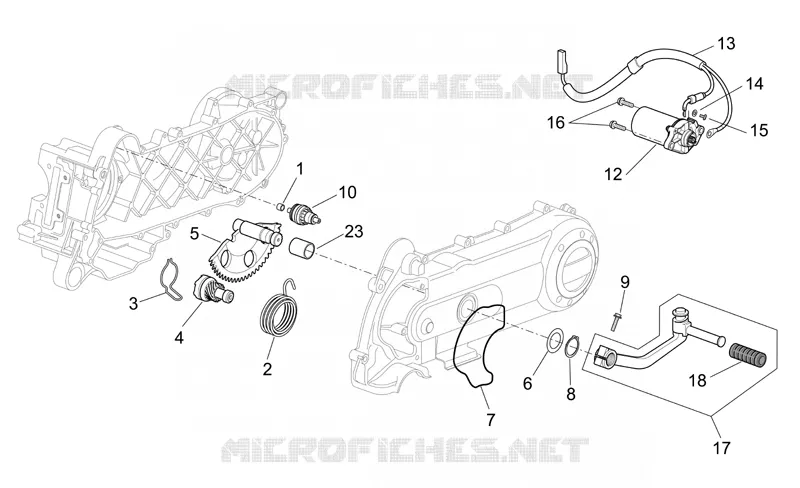

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
