Engine displacement
50
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo 4T 2V E2
5
Parts Catalog
Electrical system
6
Parts Diagram
Parts Catalog
Engine
by
Controls
Electrical system
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Horn
AP8224038
Not Available
2
Main wiring harness
AP8224352
Not Available
2
Main wiring harness
AP8224667
Not Available
3
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
4
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
5
Voltage regulator
AP8224370
Not Available
6
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
7
HT wire
AP8127311
Not Available
8
H.T. wiring sheath
AP8224463
£1,32 Unit Price incl. VAT
9
Sparkplug cap
AP8551092
Not Available
10
Starter motor wiring harness
AP8551091
Not Available
11
Starter relay
AP8224026
Not Available
12
Relay rubber
AP8220546
£3,74 Unit Price incl. VAT
13
Battery
AP8112290
Not Available
14
Coil support plate
AP8234198
£15,30 Unit Price incl. VAT
15
Digital transducer
AP8224487
Not Available
15
Digital transducer
AP8224690
Not Available
16
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
17
Clip M6
AP8102376
Not Available
18
Fuse 7,5A
AP8112244
Not Available
19
Rubber fuse box
AP8120754
£10,61 Unit Price incl. VAT
20
Rubber fuse box
AP8220342
Not Available
21
Resistor Module
AP8224396
Not Available
22
Spark plug cap
AP8220618
Not Available
23
Insulating cap
AP8550245
Not Available
24
Flasher unit
AP8124235
£24,49 Unit Price incl. VAT
25
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT

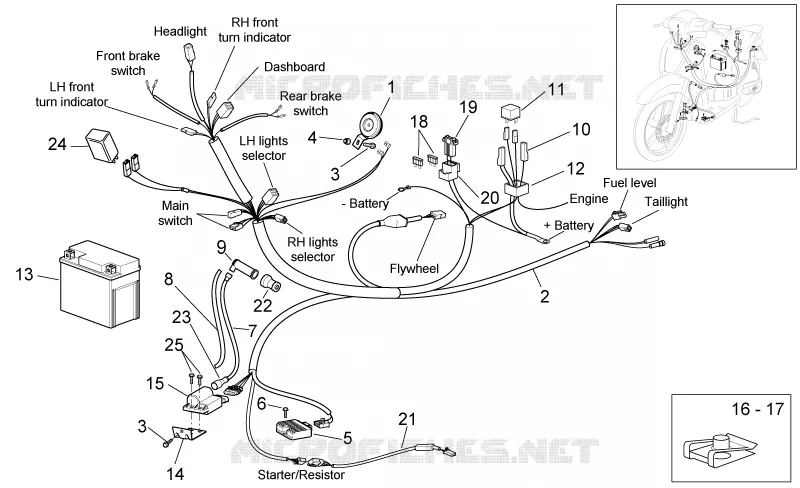

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
