1
Engine displacement
50
2
Model
SCARABEO
3
Year
2009
4
Trim
Scarabeo 2T E2 NET
5
Parts Catalog
Rear wheel - disc brake
6
Parts Diagram
Parts Catalog
Transmission cover
by
Lights
Rear wheel - disc brake
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Rear wheel
AP8208932
£281,77 Unit Price incl. VAT
2
Tubeless tyre valve
AP8201546
£5,35 Unit Price incl. VAT
3
Rear tyre .90/80-16
AP8209157
Not Available
4
Brake lever shaft
274245
Not Available
5
Pair of brake shoes
56293R
Not Available
6
Screw w/ flange
828863
£0,62 Unit Price incl. VAT
7
Rear brake lever register
AP8133987
£15,31 Unit Price incl. VAT
8
Brake cable retainer
AP8221120
£35,82 Unit Price incl. VAT
9
Registro freno posteriore
270310
£5,26 Unit Price incl. VAT
10
Rear brake lever
833428
£9,00 Unit Price incl. VAT
11
SELF-BRAKING FLANGE NUT
1C002565
£10,24 Unit Price incl. VAT
12
Rear wheel plug
AP8220367
Not Available
13
Gasket ring
273419
£1,62 Unit Price incl. VAT
14
Spring washer 14,5x24
AP8150471
£4,14 Unit Price incl. VAT
15
Square nut
828862
£2,12 Unit Price incl. VAT
16
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
17
Brake shoes return spring
647384
£1,86 Unit Price incl. VAT
18
Plate
AP8550145
Not Available

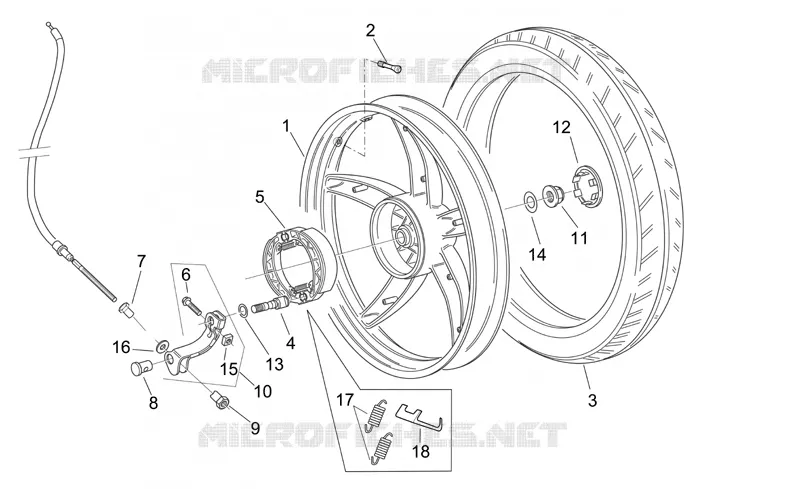

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
