Engine displacement
50
2
Model
SCARABEO
3
Year
2009
4
Trim
Scarabeo 2T E2 NET
5
Parts Catalog
Handlebar - Dashboard
6
Parts Diagram
Parts Catalog
Air box
by
Starter motor
Handlebar - Dashboard
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
1
Dashboard complete
852055
Not Available
2
Dashboard lens prot.
AP8224031
£22,92 Unit Price incl. VAT
3
Dashboard wiring + lamps
AP8224034
Not Available
4
Fascia panel w/out lenses
AP8224032
£24,46 Unit Price incl. VAT
5
Self-locking nut M13
AP8224035
Not Available
6
Yellow galv. Screw M4x12
AP8224037
Not Available
7
Yellow galv. Screw M4x8
AP8224036
Not Available
8
Box + wiring
AP8224033
Not Available
9
Rearview mirror
AP8201984
£23,16 Unit Price incl. VAT
10
Rubber bellows
AP8220462
£4,40 Unit Price incl. VAT
11
Nut with caliper, LH side
AP8201987
£18,07 Unit Price incl. VAT
12
Nut with caliper, RH side
AP8201986
£18,07 Unit Price incl. VAT
13
Handlebar w phor ctng.
852383
Not Available
14
Odometer cable
AP8214208
£53,16 Unit Price incl. VAT
15
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT
16
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
17
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
18
Hex socket screw M10x55
AP8150467
£4,90 Unit Price incl. VAT
19
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT

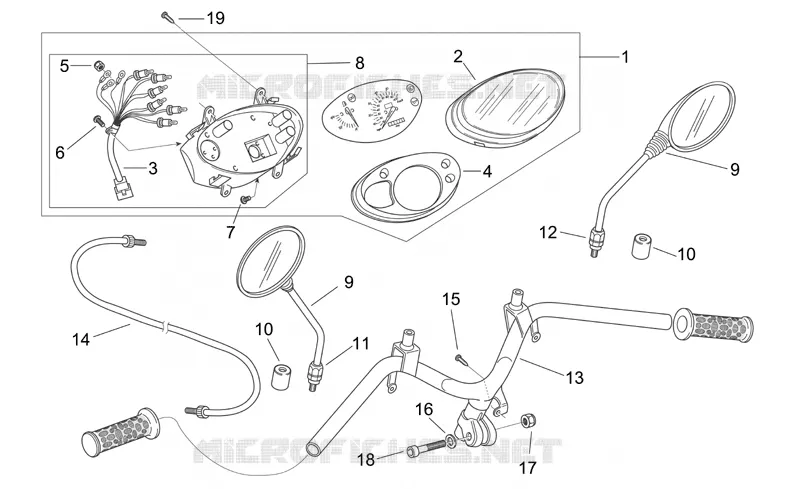

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
