Cylinder head/Carburettor

1

Baffle tube

113903

£6,40 Unit Price incl. VAT

2

Spark plug

829920

Not Available

3

Reeds bracket

82774R

£32,23 Unit Price incl. VAT

4

Intake manifold

830939

Not Available

5

Cylinder head

2865344

£50,36 Unit Price incl. VAT

6

Self locking nut M6

288245

£0,76 Unit Price incl. VAT

7

Hose clamp

842202

Not Available

8

Spacer nut M6

288531

£1,99 Unit Price incl. VAT

9

Gas valve cover

431654

£4,97 Unit Price incl. VAT

10

Gas valve spring

482942

£1,36 Unit Price incl. VAT

11

Main jet 53

CM101704

£11,28 Unit Price incl. VAT

12

Idle jet

CM102103

£4,21 Unit Price incl. VAT

13

Complete reservoir

484704

£25,66 Unit Price incl. VAT

14

screw

432456

£7,69 Unit Price incl. VAT

15

Gas valve

CM141710

£8,82 Unit Price incl. VAT

16

Starter

CM105905

£168,23 Unit Price incl. VAT

17

Conical pin

CM107510

£18,34 Unit Price incl. VAT

18

Fuel closing needle

CM128501

£13,44 Unit Price incl. VAT

19

Float chamber dump pipe L=130

CM112001

£7,12 Unit Price incl. VAT

20

screw

288865

£1,15 Unit Price incl. VAT

21

Gas valve adjuster screw

828074

£9,91 Unit Price incl. VAT

22

Float chamber fixing screw

288862

£3,06 Unit Price incl. VAT

23

screw

289575

£2,18 Unit Price incl. VAT

24

screw M6x25

830487

Not Available

25

Ring

288872

£1,38 Unit Price incl. VAT

26

Float cpl.

482916

£18,86 Unit Price incl. VAT

27

Conical pin clip

288873

£2,12 Unit Price incl. VAT

28

Cap

875551

£7,90 Unit Price incl. VAT

29

Air adjuster screw

CM107701

£6,98 Unit Price incl. VAT

30

Plate

288863

£2,48 Unit Price incl. VAT

31

Float pin

288881

£1,84 Unit Price incl. VAT

32

Spring

085285

Not Available

33

Spring

152608

£1,14 Unit Price incl. VAT

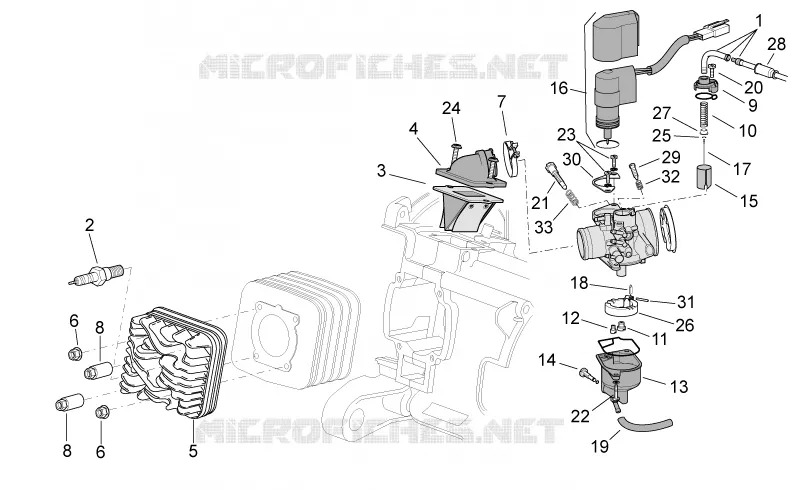

Find the detailed Cylinder head/Carburettor MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
