Parts Catalog
ABS BRAKE SYSTEM
6
Parts Diagram
Parts Catalog
FRONT BRAKE CALIPER
by
REAR ELECTRICAL SYSTEM
ABS BRAKE SYSTEM
1
2
3
3
3
3
4
4
4
4
4
5
5
6
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
ABS control unit
2D000102
£1 032,40 Unit Price incl. VAT
2
Control unit sup. bracket
2B003056
£67,63 Unit Price incl. VAT
3
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
4
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
5
screw 6X20
00H02402282
Not Available
6
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
7
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
8
T bush
AP8221023
£1,64 Unit Price incl. VAT
9
ABS HECU pipe - Front pump
2B002804
£39,08 Unit Price incl. VAT
10
ABS HECU pipe - Front clamp
2B002805
£55,80 Unit Price incl. VAT
11
Tuyau ABS HECU - Maître-cylindre de frein arrière
2B004618
£81,88 Unit Price incl. VAT
12
Stud bolt
GU96451316
£5,54 Unit Price incl. VAT
13
Hex socket screw M4x16
AP8150493
£1,88 Unit Price incl. VAT
14
Pipe fixing plate
2B001614
£25,37 Unit Price incl. VAT
15
Low self-locking nut
AP8150451
£1,66 Unit Price incl. VAT
16
Tuyau ABS HECU - Étrier arrière
2B004619
£119,63 Unit Price incl. VAT
17
Brake hose holder plate
2B001564
£7,02 Unit Price incl. VAT
18
Cable-guide
AP8121882
£6,35 Unit Price incl. VAT
19
Hose clamp
GU03658330
£13,55 Unit Price incl. VAT
20
Hex socket screw M5x12
895709
£1,27 Unit Price incl. VAT
21
Ring
GU03658201
£3,11 Unit Price incl. VAT
22
ABS pipe carrier
2B004457
£10,18 Unit Price incl. VAT
23
Hex socket screw M5x9
AP8150500
£2,18 Unit Price incl. VAT
24
Hose clamp 155x2
AP8102386
£0,18 Unit Price incl. VAT
25
Rubber spacer
AP8120001
£5,32 Unit Price incl. VAT
26
ABS pipe guard
2B004458
£5,10 Unit Price incl. VAT

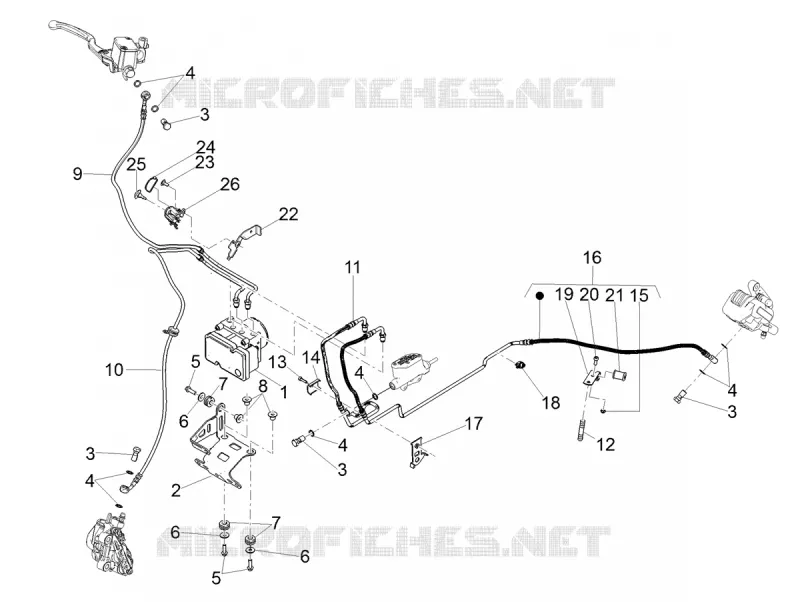

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
