Parts Catalog
Blow-by system
6
Parts Diagram
Parts Catalog
HANDLEBAR - CONTROLS
by
REAR MUDGUARD
Blow-by system
1
1
1
1
1
1
1
1
2
2
3
3
4
4
1
Spring clamp 19/12
CM226902
£1,42 Unit Price incl. VAT
2
Blow-by pipe
2B003204
£18,65 Unit Price incl. VAT
3
Anti-return valve
2B003105
£31,60 Unit Price incl. VAT
4
Blow-by pipe
2B002602
£100,96 Unit Price incl. VAT

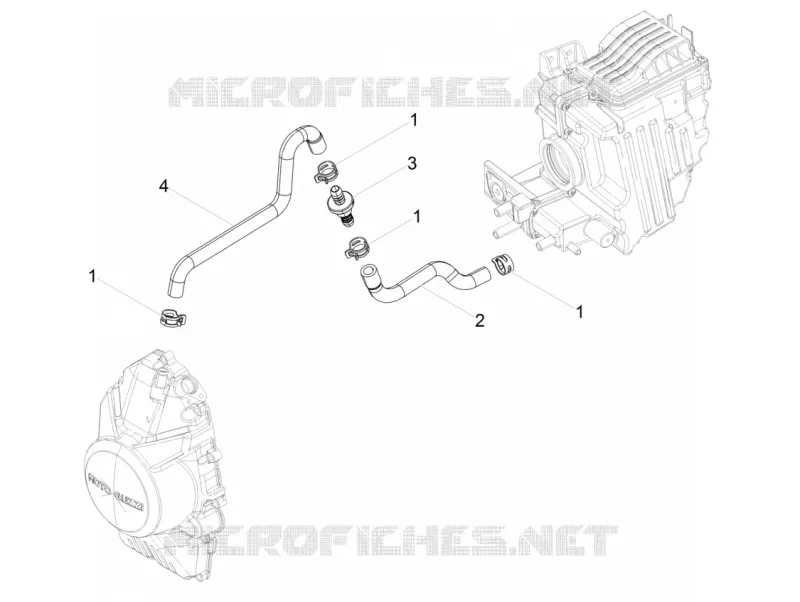

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
