Parts Catalog

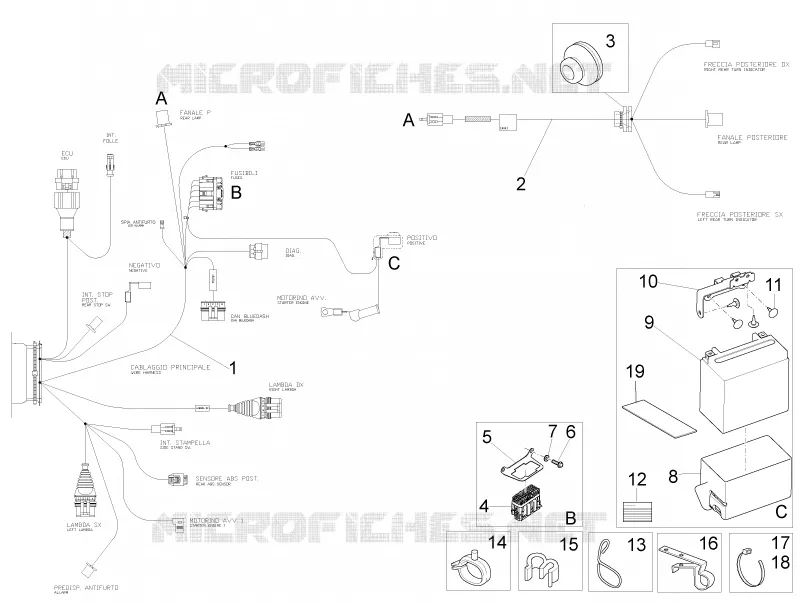

REAR ELECTRICAL SYSTEM
6
Parts Diagram
Parts Catalog
ABS BRAKE SYSTEM
by
CYLINDER HEAD - VALVES
REAR ELECTRICAL SYSTEM
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
1
Cable harness
2D000209
£740,52 Unit Price incl. VAT
2
Taillight cable set
2D000245
£59,53 Unit Price incl. VAT
3
Fairlead
070286
Not Available
4
Fuse holder box
584211
£62,24 Unit Price incl. VAT
5
Fuse block support
883161
£38,00 Unit Price incl. VAT
6
Hex socket screw M5x12
GU98682212
£1,06 Unit Price incl. VAT
7
Washer 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
8
Battery cowl
2B002781
£85,75 Unit Price incl. VAT
9
Battery Yuasa YTX14-BS 12V-12Ah (150x87x145)
638733
£195,61 Unit Price incl. VAT
9
Battery PTX14-BS 12V 12Ah (Piaggio)
1R000319
£119,12 Unit Price incl. VAT
10
Battery bracket
B063233
Not Available
11
Rubber spacer
AP8120001
£5,32 Unit Price incl. VAT
12
Decal "Battery service"
GU32517710
£5,20 Unit Price incl. VAT
13
Fairlead
AP8181140
£9,17 Unit Price incl. VAT
14
Pipes/cables retainer spring
CM013202
£2,60 Unit Price incl. VAT
15
Fairlead
894704
£13,38 Unit Price incl. VAT
16
Hose clamp
B043850
£14,89 Unit Price incl. VAT
17
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
18
Hose clamp 2,4x92
GU49609601
£0,90 Unit Price incl. VAT
19
Lat.battery support rubber
AP8144552
£33,10 Unit Price incl. VAT
