Parts Catalog
CYLINDER HEAD - VALVES
6
Parts Diagram
Parts Catalog
Cylinder head cover
by
CYLINDER - PISTON
CYLINDER HEAD - VALVES
1
1
1
1
1
1
2
2
2
3
4
4
5
5
6
6
7
7
7
8
8
8
9
9
9
10
10
10
11
11
12
12
13
14
14
15
15
16
16
1
Cylinder/head gasket SP. 0.8 mm
1A004661
Not Available
1
Cylinder/head gasket SP. 10 mm
1A004662
Not Available
1
Cylinder/head gasket sp. 0,6 mm
1A004660
Not Available
2
Pin 11,8X10
825597
£2,35 Unit Price incl. VAT
3
Téte d.guides desoupapes
1A0151195
Not Available
4
Téte g.guides desoupapes
1A0151165
Not Available
5
Soupape d'admission
1A013108
Not Available
6
Soupape d'échappement
1A014459
Not Available
7
Stud bolt
1A003632R
£2,35 Unit Price incl. VAT
8
Lower cap
1A004751
Not Available
9
Valve gasket ring
1A003452
£7,75 Unit Price incl. VAT
10
Ressort de rappel soupape
1A011173
Not Available
11
Upper cap
1A004750
Not Available
12
Half-cone
871640
£4,10 Unit Price incl. VAT
13
Snap ring
GU90353009
£1,02 Unit Price incl. VAT
14
Godet supérieur
1A012899
Not Available
15
Demi-clavette
1A011722
Not Available
16
Embout soupape
1A011723
Not Available

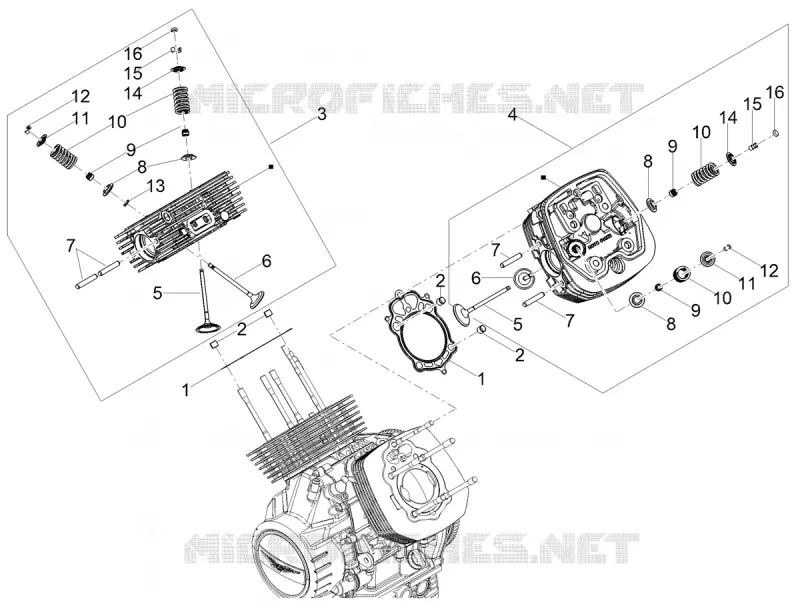

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
