Parts Catalog

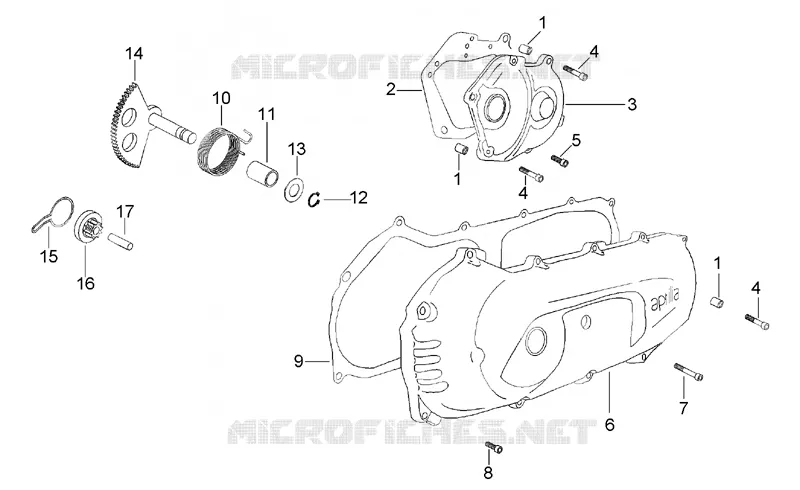

Covers - kick starter
6
Parts Diagram
Parts Catalog
Variator - Transmission final drive
by
Ignition unit
Covers - kick starter
1
1
1
2
3
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Pin cover D10x14
AP8206170
Not Available
2
Cover gasket
AP8206163
Not Available
3
Transmission cover
AP8206112
Not Available
4
Screw M6x35
AP8502567
Not Available
5
Screw M6x20
AP8502564
£0,96 Unit Price incl. VAT
6
Kickstart cover
AP8206464
Not Available
7
Screw M6x45
AP8206507
Not Available
8
Screw M6x25
AP8206508
Not Available
9
K.start cover gasket
AP8206484
Not Available
10
Lever return spring
AP8206149
Not Available
11
Kick-start shaft bush 15x20x30
AP8206152
Not Available
12
Outside circlip D15
AP8501469
£2,48 Unit Price incl. VAT
13
Blue steel washer D15,1x28x1
AP8206193
Not Available
14
Kick shaft assy
AP8206122
£44,75 Unit Price incl. VAT
15
Kickstarter spring
AP8206148
Not Available
16
Sliding kick-start gear
AP8206692
Not Available
17
Pin D8x32
AP8206172
Not Available

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
