Engine displacement
50
2
Model
SCARABEO
3
Year
2005
4
Trim
Scarabeo 2T (engine Minarelli)
5
Parts Catalog
Rear wheel - drum brake
6
Parts Diagram
Parts Catalog
Rear wheel - disc brake
by
Engine
Rear wheel - drum brake
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Rear wheel
AP8208623
Not Available
1
Rear wheel
AP8208755
Not Available
1
Rear wheel
AP8208761
Not Available
1
Rear wheel
AP8208715
Not Available
2
Tyre
0000000
Not Available
3
Tyre
0000000
Not Available
4
Rear brake cam
AP8213319
Not Available
5
Brake shoes+springs
AP8213133
Not Available
6
Rear brake cable
AP8214123
Not Available
7
Coil compress. spring *
AP8213137
£2,59 Unit Price incl. VAT
8
Brake cable retainer
AP8221120
£35,82 Unit Price incl. VAT
9
Rear brake lever register
AP8101103
£5,94 Unit Price incl. VAT
10
Rear brake lever, zinc finish
AP8232678
£42,23 Unit Price incl. VAT
11
DAX flange nut M14x1,5
AP8152244
£3,62 Unit Price incl. VAT
12
Rear wheel plug
AP8220621
Not Available
12
Rear wheel plug
AP8220367
Not Available
12
Rear wheel plug, blue
AP8258516
Not Available
13
O-ring 114
AP8120769
£0,96 Unit Price incl. VAT
14
Spring washer 14,5x24
AP8150471
£4,14 Unit Price incl. VAT
15
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
16
Hex socket screw M6x35
AP8152136
£1,27 Unit Price incl. VAT
17
Cable-guide
AP8221209
£6,01 Unit Price incl. VAT
18
Brake wear indicator
AP8213435
Not Available
19
Rear spoke cover
AP8249886
Not Available
20
screw
AP8208544
Not Available

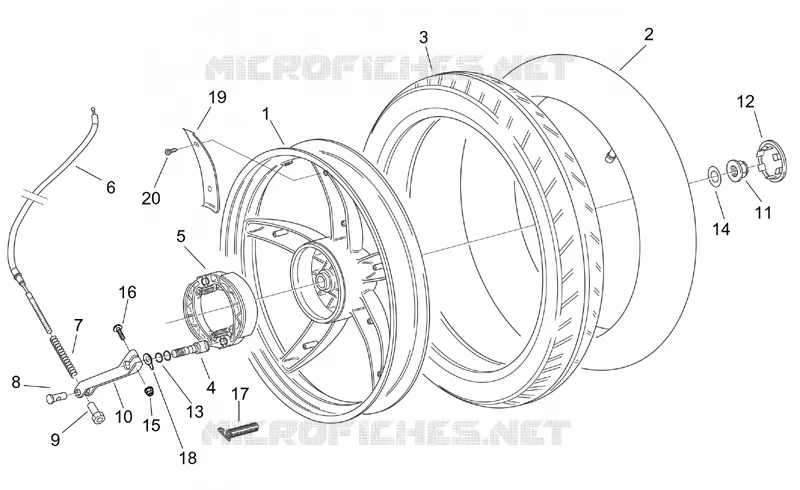

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
