Parts Catalog
Variator - Transmission final drive
6
Parts Diagram
Parts Catalog
Carburettor - oil pump assy.
by
Covers - kick starter
Variator - Transmission final drive
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Bearing D10x30x9
AP8206159
Not Available
2
Bearing D17x40x12
AP8502626
Not Available
3
Drive shaft Z=13
AP8206425
Not Available
4
Drive shaft assy Z=45
AP8206469
Not Available
4
Drive shaft assy Z=44
AP8206423
£56,53 Unit Price incl. VAT
5
Idle gear assy Z=12/52
AP8206424
Not Available
5
Idle gear assy Z=11/52
AP8206477
Not Available
6
Belleville spring
AP8206150
Not Available
7
Blue steel washer D14x29x1
AP8206195
Not Available
8
T bush
AP8206479
Not Available
9
Starter motor gear Z=71
AP8206144
Not Available
10
Cage D57x61x10
AP8206210
Not Available
11
Starter clutch assy.
AP8206147
£60,92 Unit Price incl. VAT
12
Slider
AP8206698
Not Available
13
Ramp plate
AP8206136
£21,25 Unit Price incl. VAT
14
Pin roller D8,8
AP8206701
Not Available
14
Pin roller D8,5
AP8206455
£4,70 Unit Price incl. VAT
15
Pulley assy., driving
AP8222335
Not Available
16
Vee-Belt
AP8206109
£61,07 Unit Price incl. VAT
17
Bush 13x18x38,2
AP8222336
Not Available
18
Spacer D18x23x3,5
AP8222458
Not Available
18
Spacer D18x23x5
AP8206478
Not Available
18
Spacer D18x23x2,5
AP8206566
Not Available
19
Blue steel washer D13x18,5x1
AP8206702
Not Available
20
Fixed pulley
AP8206116
Not Available
21
Front pulley drive plate
AP8206140
Not Available
22
Toothed start clutch cup
AP8206141
Not Available
23
Conical spring washer
AP8206204
Not Available
24
Nut M10x1,25
AP8206183
Not Available

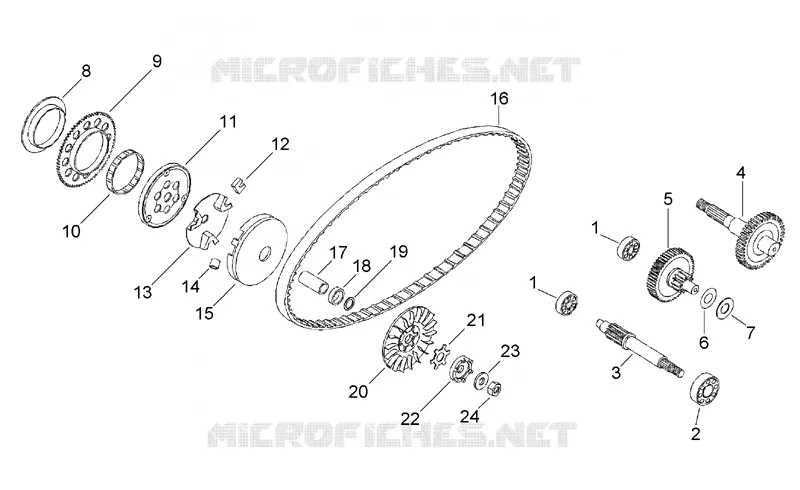

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
