Engine displacement
500
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo
5
Parts Catalog
Water cooler
6
Parts Diagram
Parts Catalog
RH controls
by
Fuel tank
Water cooler
1
2
3
4
5
6
6
7
8
9
9
9
9
10
11
12
13
14
15
16
17
18
18
19
20
21
21
1
Water cooler
AP8104254
Not Available
2
Fan, cpl.
AP8124855
Not Available
3
Water cooler support
AP8134485
Not Available
4
Cooler-thermostat pipe
AP8144339
£29,42 Unit Price incl. VAT
5
Water cooler-head tube
AP8144338
Not Available
6
Silent-block *
AP8120275
£2,83 Unit Price incl. VAT
7
Rubber spacer
AP8120405
£5,52 Unit Price incl. VAT
8
Nut M6
AP8150026
£0,96 Unit Price incl. VAT
9
Hose clamp D16-24x8*
AP8101573
£2,95 Unit Price incl. VAT
10
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
11
Expansion tank
AP8149197
£82,01 Unit Price incl. VAT
12
Fuel pipe 5,5x10
AP8220325
Not Available
13
Breather pipe 7,5X3,5
AP8144506
£28,10 Unit Price incl. VAT
14
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
15
Clip M6
AP8102376
Not Available
16
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
17
Screw w/ flange M5x12
AP8152302
Not Available
18
White hose clip d.13x6
AP8102764
£3,25 Unit Price incl. VAT
19
Rad cap w/ vent
AP8201463
Not Available
20
Hose clamp
AP8104097
£3,42 Unit Price incl. VAT
21
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT

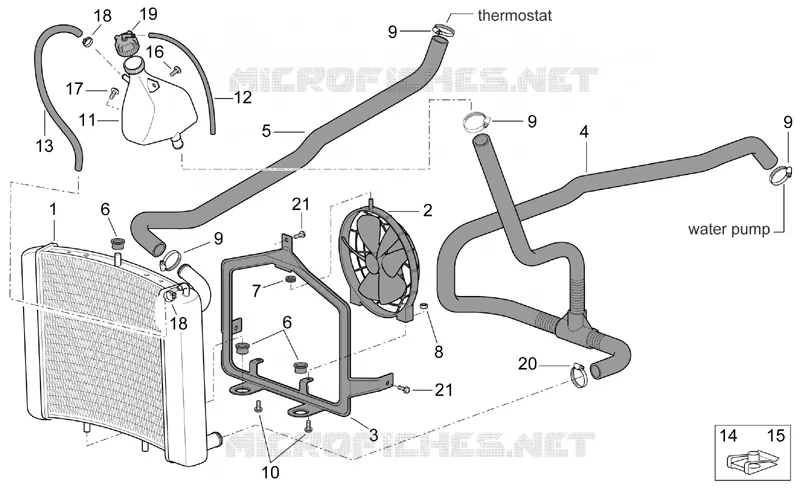

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
