Engine displacement
500
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo
5
Parts Catalog
Undersaddle
6
Parts Diagram
Parts Catalog
Central body III
by
Saddle unit
Undersaddle
1
2
3
4
4
4
4
4
4
5
6
7
7
7
7
8
8
8
8
9
9
9
9
10
10
10
10
11
12
13
13
14
14
15
16
1
Saddle compartment, black
AP8149232
Not Available
2
Cover
AP8158974
Not Available
3
Fuel sens. cover, black
AP8238856
Not Available
4
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
5
Saddle closing plate
AP8102947
£39,55 Unit Price incl. VAT
6
Saddle fastener
AP8114419
Not Available
7
T bush *
AP8121725
£1,88 Unit Price incl. VAT
8
Filter housing rubber
AP8220370
£2,98 Unit Price incl. VAT
9
Screw w/ flange M5x25
AP8152275
Not Available
10
Washer 5,5x15x1,6*
AP8150013
£1,61 Unit Price incl. VAT
11
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
12
T bush *
AP8121075
£1,96 Unit Price incl. VAT
13
T bush
AP8121728
£1,88 Unit Price incl. VAT
14
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
15
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
16
Splash guard
AP8149233
Not Available

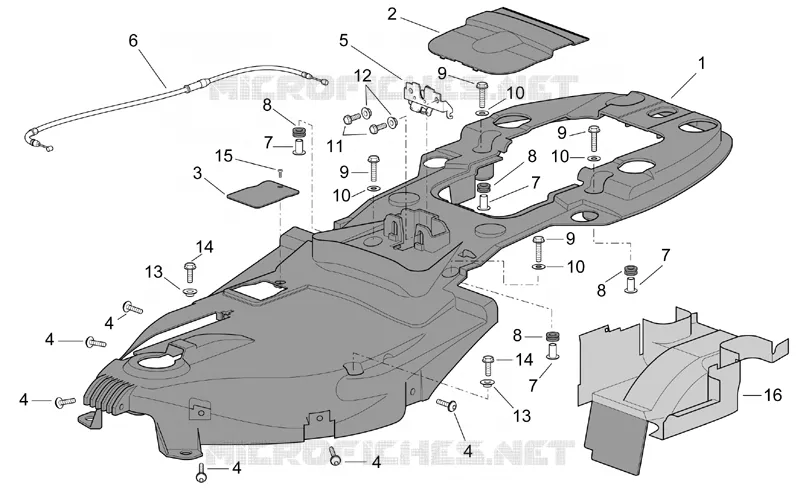

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
