CLUTCH for V7 III Special 750 Euro 4 ABS from 2019

Free shipping for all orders to United Kingdom over £150! See conditions.

CLUTCH

1

Complete single plate clutch assembly

2A000419

£259,86 Unit Price incl. VAT

2

screw

GU19067700

£2,51 Unit Price incl. VAT

3

Washer 8,4X13X0,8

GU14615901

£2,48 Unit Price incl. VAT

4

Starter ring gear

2A000724

£512,88 Unit Price incl. VAT

5

Washer 6,4x10x0,7

GU14217901

Not Available

6

Vite testa bombata torx M6X20

2A000774

£2,64 Unit Price incl. VAT

7

Clutch shaft, Z=18

2A000790

£136,37 Unit Price incl. VAT

8

Drive rod

2A000216

£23,76 Unit Price incl. VAT

9

Ball bearing 25x52x15

GU92201226

£50,18 Unit Price incl. VAT

10

O-ring 23,52x1,78

GU90706235

£1,60 Unit Price incl. VAT

11

Gasket ring

886629

£28,92 Unit Price incl. VAT

12

Spacer

1A008627

Not Available

13

Écrou M25x1,5

1A014685

Not Available

14

Ball bearing

2A000375

£19,43 Unit Price incl. VAT

15

Clutch gear

B013037

£24,71 Unit Price incl. VAT

16

Thrust bearing

2A000376

£23,40 Unit Price incl. VAT

17

Outer body

GU14086100

£71,74 Unit Price incl. VAT

18

Lever pin

2A000384

£21,78 Unit Price incl. VAT

19

O-ring 6.5x1.5

2A000385

£0,61 Unit Price incl. VAT

20

Split pin

GU95500222

£1,26 Unit Price incl. VAT

21

Clutch relese shaft

2A000631

£34,31 Unit Price incl. VAT

22

Lever return spring

GU94321105

£1,94 Unit Price incl. VAT

23

Adjuster screw

2A000838

£6,77 Unit Price incl. VAT

24

Nut

GU92606508

£1,26 Unit Price incl. VAT

25

Bush

GU14085900

£2,48 Unit Price incl. VAT

26

Bushing

GU05217630

£10,75 Unit Price incl. VAT

27

O-ring 17,13x2,62

GU90706170

£2,00 Unit Price incl. VAT

28

Driven clutch disc

2A000770

£153,52 Unit Price incl. VAT

29

Ring

2A000418

£5,36 Unit Price incl. VAT

30

Spring cap

2A000638

£18,77 Unit Price incl. VAT

31

Support

2A000741

£7,49 Unit Price incl. VAT

32

Gasket ring

2A000378

£2,20 Unit Price incl. VAT

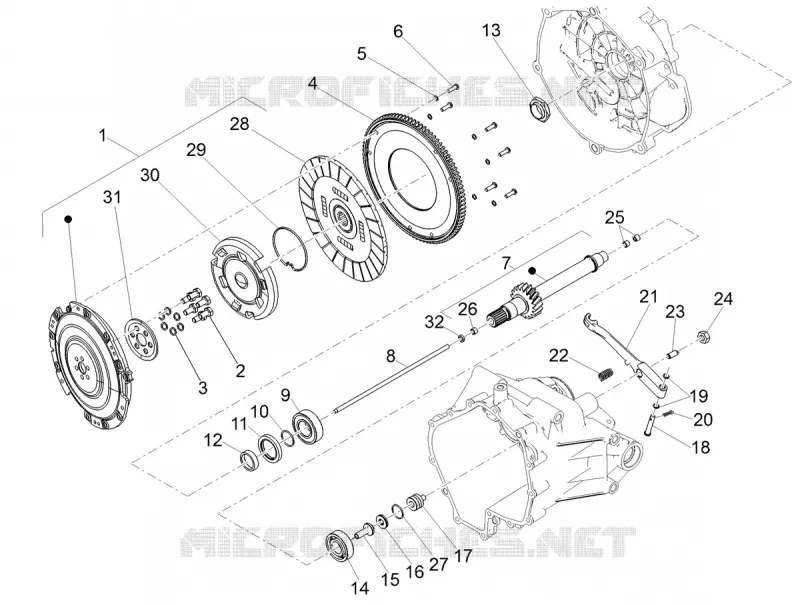

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
