Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Front brake caliper
by
Rear brake caliper

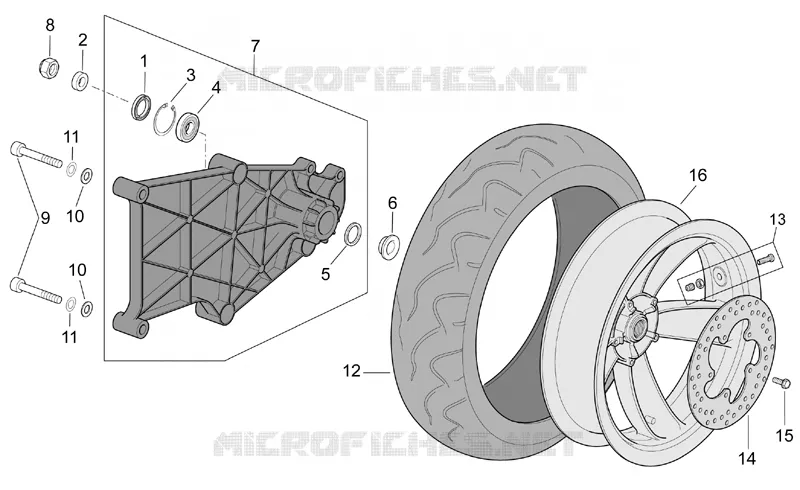

Rear wheel
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
1
Dust shield
AP8149465
£11,84 Unit Price incl. VAT
2
Rear wheel spacer
AP8125862
Not Available
3
Ring 47
AP8152401
£1,87 Unit Price incl. VAT
4
Bearing 6303-2RS1
AP8152402
Not Available
5
Dust cover
AP8110086
£12,07 Unit Price incl. VAT
6
Rear wheel spacer
AP8125845
Not Available
7
Exhaust pipe support clamp
AP8134925
Not Available
8
SELF-BRAKING FLANGE NUT
1C002565
£10,24 Unit Price incl. VAT
9
screw
AP8152403
£2,06 Unit Price incl. VAT
10
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
11
Curved spring washer *
AP8150292
£1,88 Unit Price incl. VAT
12
Rear tyre 140/70-16"
AP8109263
Not Available
13
Tubeless tyre valve
AP8201546
£5,35 Unit Price incl. VAT
14
Rear brake disc
AP8113800
Not Available
15
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
16
Rear wheel
AP8128006
Not Available

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
