Engine displacement
500
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo
5
Parts Catalog
Primary transm.
6
Parts Diagram
Parts Catalog
Transmission
by
Engine plastic
Primary transm.
1
2
3
3
4
5
6
7
8
9
10
11
12
13
1
Drive half-pulley cpl.
AP8560199
Not Available
2
Ramp plate
AP8560138
Not Available
3
Slider
AP8560198
Not Available
4
Pin roller Kit
AP8560179
Not Available
5
screw
AP8560143
Not Available
6
V-belt
AP8560188
Not Available
7
Plain washer
AP8560129
Not Available
8
Belleville spring
AP8560127
Not Available
9
Nut m18x1,5
AP8560132
Not Available
10
Toothed pulley
AP8560171
Not Available
11
Plain washer
AP8560134
Not Available
12
Half-pulley assy., driving
AP8560200
Not Available
13
Spacer
AP8570003
Not Available

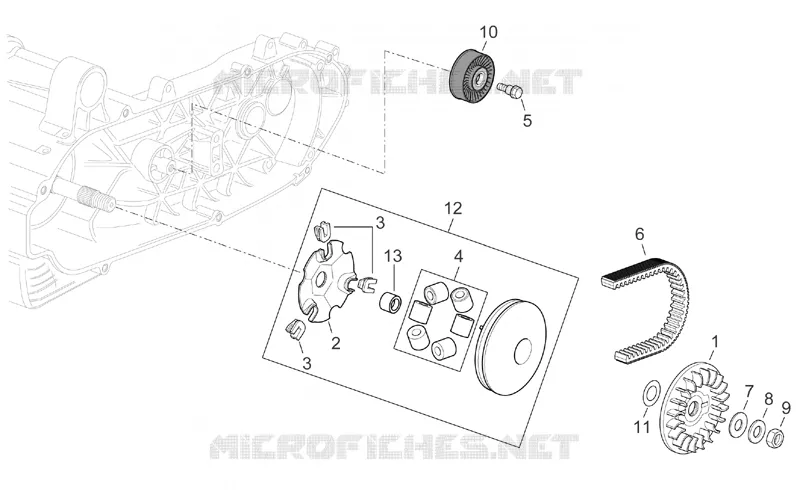

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
