Engine displacement
500
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo
5
Parts Catalog
Head cover cpl.
6
Parts Diagram
Parts Catalog
Valve control
by
Flywheel cover
Head cover cpl.
1
2
3
3
3
3
4
5
5
5
5
5
6
6
7
7
8
9
1
Spark plug CR7EKB
AP8560146
Not Available
1
Spark plug
AP8580168
Not Available
2
Gasket
AP8570010
Not Available
3
Screw w/ flange M6x30
AP8570007
Not Available
4
Head cover cpl.
AP8570009
Not Available
5
Pad
AP8570008
Not Available
6
Nut
AP8570022
Not Available
7
Washer
AP8570001
Not Available
8
Cap
AP8560010
Not Available
9
Bleed valve
AP8560015
Not Available

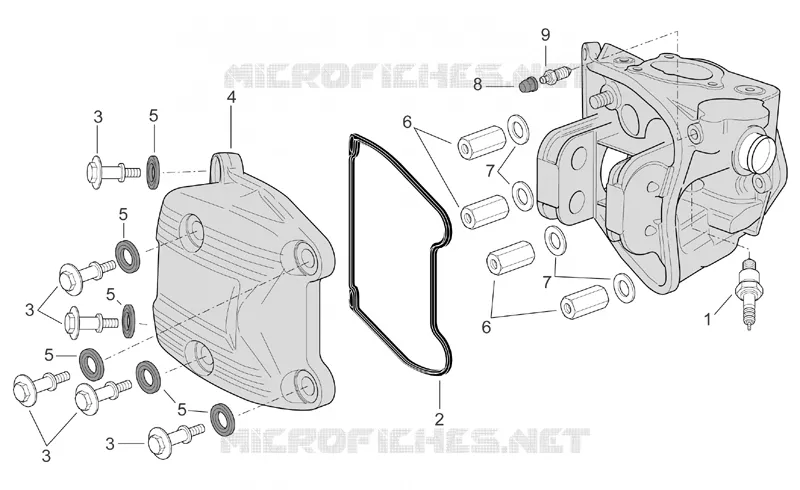

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
