Engine displacement
500
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo
5
Parts Catalog
Fuel vapour recover system
6
Parts Diagram
Parts Catalog
Fuel tank
by
Air box
Fuel vapour recover system
1
2
3
4
5
5
5
5
5
5
5
6
6
7
7
7
7
8
9
10
11
12
1
Carbon filter
AP8102678
£41,63 Unit Price incl. VAT
2
Valve
AP8104655
Not Available
3
Valve
AP8104670
Not Available
4
Carbon filter support
AP8146798
Not Available
5
Hose clip, green D11x6,6x1
AP8120446
£3,25 Unit Price incl. VAT
6
Hose clamp 12,5x8
AP8102239
£3,06 Unit Price incl. VAT
7
Fuel pipe 5,5x10
AP8120952
Not Available
8
Fuel pipe 8x13
AP8120905
Not Available
9
Bracket
AP8146810
Not Available
10
Rubber spacer
AP8104661
Not Available
11
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
12
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT

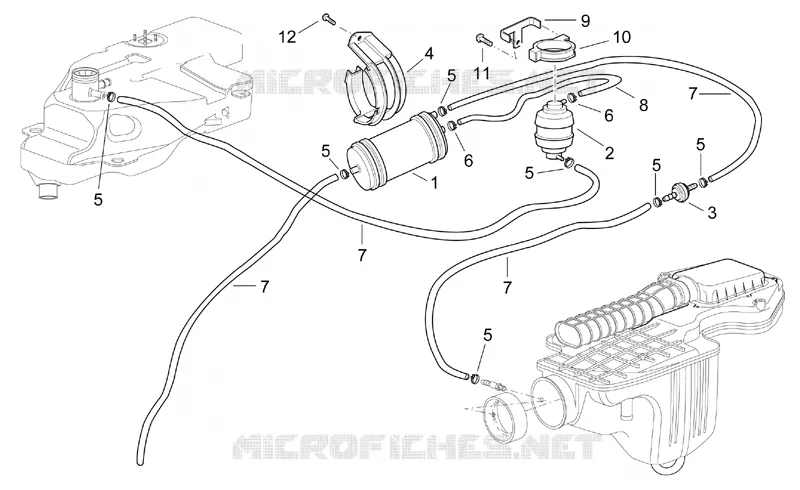

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
