Engine displacement
500
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo
5
Parts Catalog
Fron fork II
6
Parts Diagram
Parts Catalog
Front fork I
by
Rear shock absorber
Fron fork II
1
1
2
2
3
3
4
5
5
6
6
7
7
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
17
17
18
18
19
20
21
22
23
23
24
24
25
25
1
Stop ring D.37,5x1,2
AP8163433
Not Available
1
Stop ring D37,5X1,2
AP8163150
£4,27 Unit Price incl. VAT
2
Plug
AP8163432
Not Available
2
Plug
AP8163151
Not Available
3
Spring
AP8163152
£81,25 Unit Price incl. VAT
3
Spring
AP8163430
Not Available
4
Bush ring
AP8123650
£13,16 Unit Price incl. VAT
5
Shock absorber
AP8163411
Not Available
5
Shock absorber
AP8163153
Not Available
5
Shock absorber
AP8163423
Not Available
6
Return spring
AP8163076
£25,87 Unit Price incl. VAT
6
Return spring
AP8163422
Not Available
7
RH hub
AP8163154
Not Available
7
Sleeve cpl.
AP8163420
£363,59 Unit Price incl. VAT
8
LH hub
AP8163155
£93,46 Unit Price incl. VAT
9
Stroke limit stop
AP8163289
£15,34 Unit Price incl. VAT
9
Stroke limit stop
AP8123655
£55,15 Unit Price incl. VAT
10
Bushing
AP8123665
Not Available
10
Bushing
AP8163419
£17,95 Unit Price incl. VAT
11
Dust cover + spring
AP8123777
Not Available
11
Dust cover
AP8163429
£7,99 Unit Price incl. VAT
12
Stop ring
AP8163428
Not Available
12
Stop ring
AP8123653
Not Available
13
Gasket ring
AP8103235
Not Available
13
Gasket ring
AP8163427
Not Available
14
Cup
AP8163426
Not Available
14
Cup
AP8123360
Not Available
15
Upper spring guide bush
AP8123664
Not Available
15
Upper spring guide bush
AP8163425
Not Available
16
screw
AP8123920
Not Available
16
Hex socket screw M6x20
AP8223054
£2,36 Unit Price incl. VAT
17
Seal washer
AP8163414
Not Available
17
Seal washer
AP8123206
£13,58 Unit Price incl. VAT
18
Screw M10x30
AP8123216
£7,48 Unit Price incl. VAT
18
screw M10x30
AP8163285
£4,09 Unit Price incl. VAT
19
RH sleeve
AP8163235
Not Available
20
LH sleeve
AP8163236
Not Available
21
RH sleeve
AP8163417
Not Available
22
LH sleeve
AP8163418
Not Available
23
O-ring
AP8163431
Not Available
24
Bushing
AP8163421
Not Available
25
Bush ring
AP8163424
Not Available

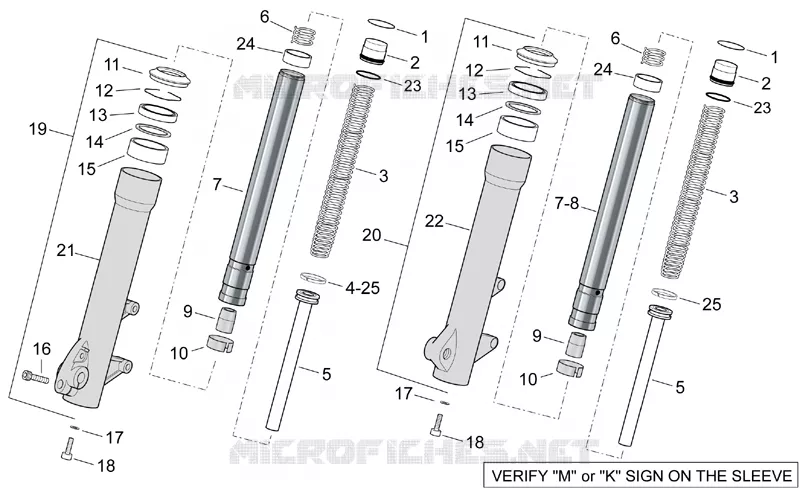

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
