Engine displacement
400
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo Light
5
Parts Catalog
Water pump
6

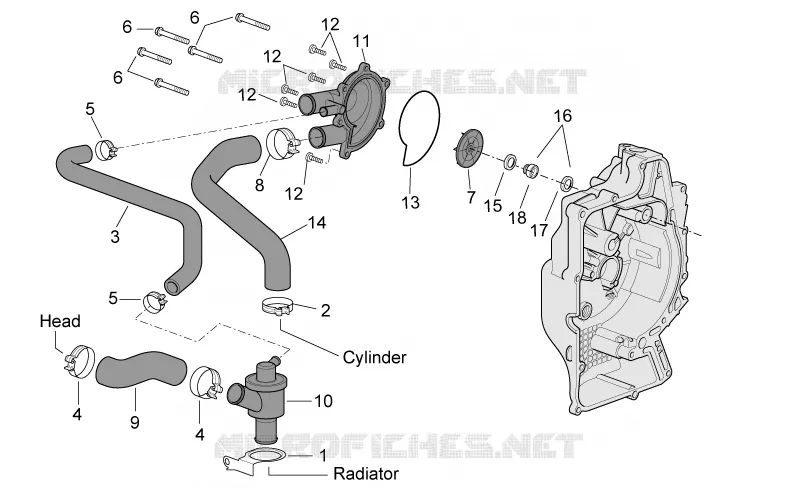

Parts Diagram
Parts Catalog
Acc. - Windshields
by
Fron fork II
Water pump
1
2
3
4
4
5
5
6
6
6
7
8
9
10
11
12
12
12
12
13
14
15
16
17
18
1
Bracket
AP8570036
Not Available
2
Hose clamp
CM001908
£2,06 Unit Price incl. VAT
3
By-pass pipe
AP8560238
Not Available
4
Hose clamp
CM001915
£1,99 Unit Price incl. VAT
5
Hose clamp
CM001904
£1,51 Unit Price incl. VAT
6
screw M6x35
414838
£1,27 Unit Price incl. VAT
7
Water pump impeller cpl.
827929
Not Available
8
Hose clamp
CM001917
Not Available
9
Thermostat-head pipe
840826
£11,29 Unit Price incl. VAT
10
Thermostat
848140
£68,92 Unit Price incl. VAT
11
Water pump cover
833717
Not Available
12
screw
842041
£0,97 Unit Price incl. VAT
13
O-ring
827884
£2,32 Unit Price incl. VAT
14
Pump-cylinder hose
873104
Not Available
15
Washer
871799
£1,00 Unit Price incl. VAT
16
Seal rings kit
497486
£13,84 Unit Price incl. VAT
17
Gasket ring
842595
Not Available
18
Gasket ring
844439
Not Available

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
