Front body I for Scarabeo Light from 2007

Free shipping for all orders to United Kingdom over £150! See conditions.

Front body I

1

Front mudguard, blue

AP8156298

Not Available

1

Front mudguard, white

AP8156301

Not Available

1

Front mudguard, white

AP8156346

Not Available

1

Front mudguard, red

AP8268937

Not Available

1

Front mudguard, grey

AP8156200

£200,56 Unit Price incl. VAT

1

Front mudguard, silver

AP8156350

Not Available

1

Front mudguard, grey

AP8156299

Not Available

1

Front mudguard, gold

AP8226890

Not Available

1

Front mudguard, beige

AP8156268

Not Available

1

Front mudguard, red

AP8156300

£200,56 Unit Price incl. VAT

1

Front mudguard, black

AP8156302

Not Available

1

Front mudguard, black

AP8156267

Not Available

2

RH hub cover

598850

£66,14 Unit Price incl. VAT

3

LH hub cover

598851

£66,14 Unit Price incl. VAT

4

Front fairing, black

AP8179623

Not Available

4

Front fairing, beige

AP8179637

Not Available

4

Front fairing, black

AP8184057

Not Available

4

Front fairing, grey

AP8179609

£198,66 Unit Price incl. VAT

4

Front fairing, white

AP8184553

Not Available

4

Front fairing, red

AP8268943

Not Available

4

Front fairing, blue

AP8179995

Not Available

4

Front fairing, red

AP8184025

Not Available

4

Front fairing, grey

AP8184010

Not Available

4

Front fairing, gold

AP8268910

Not Available

4

Front fairing, silver

AP8184602

Not Available

4

Front fairing, white

AP8184040

Not Available

5

Fairing finish

AP8179306

£63,43 Unit Price incl. VAT

5

Fairing finish

856578

£58,44 Unit Price incl. VAT

6

Spring plate

CM017409

£1,27 Unit Price incl. VAT

7

Screw w/ flange M5x16

AP8152298

£3,48 Unit Price incl. VAT

8

Clip M5

AP8102375

£2,20 Unit Price incl. VAT

9

Bush

AP8121991

£3,60 Unit Price incl. VAT

10

Screw w/ flange M6x16

AP8152278

£1,91 Unit Price incl. VAT

11

Self-tap screw 3,9x14

AP8150413

£1,61 Unit Price incl. VAT

12

Screw 4,2x16*

AP8152351

£0,18 Unit Price incl. VAT

13

Screw clip D5,5*

AP8201763

£1,85 Unit Price incl. VAT

14

Screw 4,2x16*

AP8152351

£0,18 Unit Price incl. VAT

15

Screw 5,5x15,9*

AP8150426

£1,27 Unit Price incl. VAT

16

Gasket

AP8144538

Not Available

17

"Aprilia" dataplate

AP8187010

£14,83 Unit Price incl. VAT

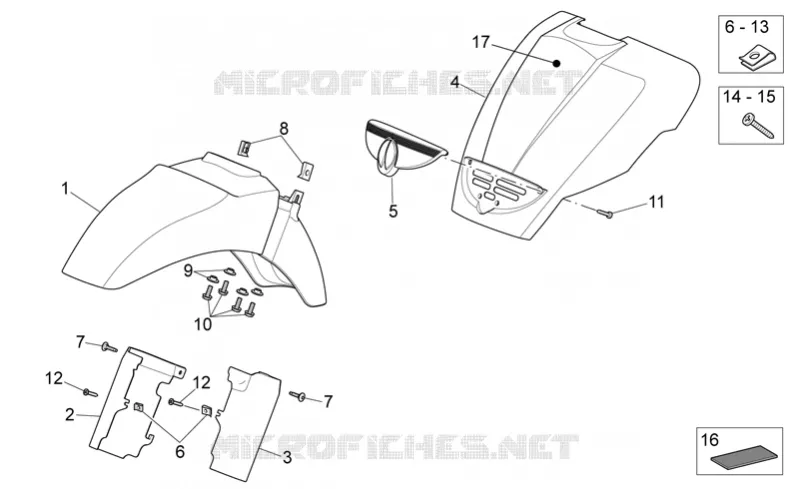

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
