Engine displacement
500
2
Model
SCARABEO
3
Year
2008
4
Trim
Scarabeo Light
5
Parts Catalog
Connecting rod
6
Parts Diagram
Parts Catalog
Front body II
by
Completing part
Connecting rod
1
2
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
1
TENSION ROD ASSY
668100
Not Available
2
Pad
AP8144754
Not Available
4
Washer 38x10,3x3
AP8161141
Not Available
5
Cup
AP8161145
Not Available
6
Engine connecting element
666671
£305,65 Unit Price incl. VAT
6
Engine connecting element cpl.
852849
Not Available
7
Engine pin
666423
Not Available
7
Engine pin
667384
£117,71 Unit Price incl. VAT
7
Engine pin
AP8161091
Not Available
8
Rod pin
AP8161092
Not Available
9
Washer 30,5x14,3x3,5
AP8161143
Not Available
9
Spacer
666422
£22,96 Unit Price incl. VAT
10
Spacer
AP8161156
Not Available
10
Spacer
666670
Not Available
11
Washer 25x12,5x3,5
AP8161144
Not Available
12
Washer 12,2x22x2
AP8152018
£9,28 Unit Price incl. VAT
13
Low nut M22x2
AP8150534
Not Available
14
Low self-locking nut
AP8150436
£1,94 Unit Price incl. VAT
15
Low self-locking nut M12*
AP8150432
£2,18 Unit Price incl. VAT
16
Washer
AP8161099
Not Available
17
Bearing D15x35x11
AP8502624
Not Available
18
Self-locking nut M12*
AP8152519
Not Available
19
Spring washer 6,4x11x0,5*
AP8150429
Not Available
20
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
21
Spacer
667350
£19,91 Unit Price incl. VAT

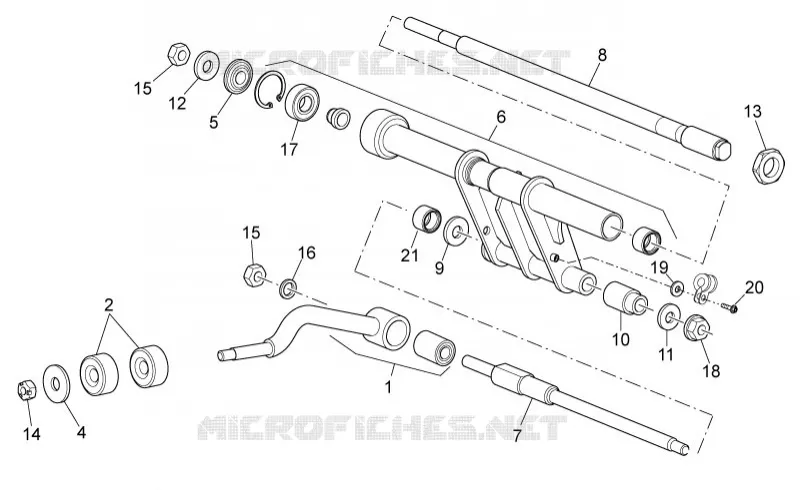

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
