Engine displacement
300
2
Model
SCARABEO
3
Year
2010
4
Trim
Scarabeo Light E3
5
Parts Catalog
Throttle body
6

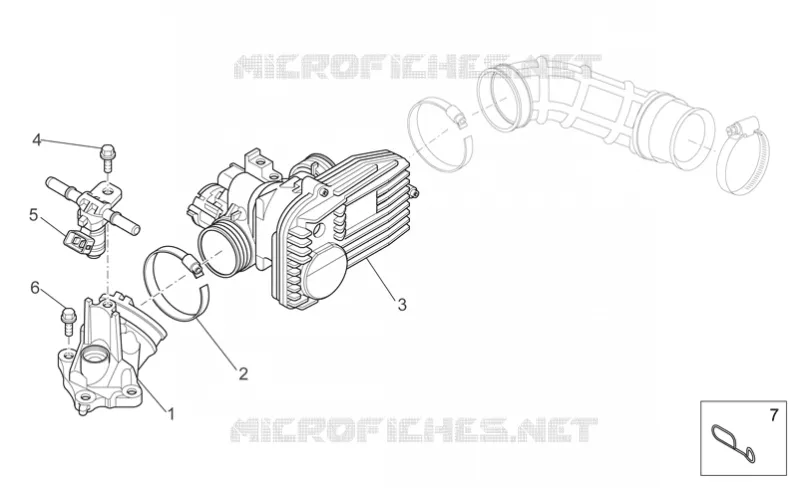

Parts Diagram
Parts Catalog
Cylinder
by
Variator cover
Throttle body
1
2
3
4
5
6
7
1
Union
847881
Not Available
2
Hose clamp
709532
Not Available
3
Throttle body cpl.
CM078216
Not Available
4
Screw w/ flange M5x16
830061
£2,48 Unit Price incl. VAT
5
Complete injector
8732885
£159,76 Unit Price incl. VAT
6
Screw w/ flange
AP8540002
Not Available
7
Cable-guide
AP8202159
£6,17 Unit Price incl. VAT
